उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| आकार विकल्प: | 10 मीटर, 15 मीटर, 20 मीटर, 30 मीटर, 40 मीटर, 50 मीटर, 60 मीटर, | मटेरेल: | कार्बन स्टील Q345R |
|---|---|---|---|
| भरने का माध्यम: | प्रोपेन,ब्यूटेन | टैंक व्यास: | DN2700mm |
| डिजाइन दबाव:: | 1.71 एमपीए | स्तर नापने के लिए गेज: | रोटोगेज या मेग्नेटिक प्रकार |
| टैंक वाल्व: | कट-ऑफ वाल्व, सुई वाल्व, सुरक्षा वाल्व, रिटर्न वाल्व आदि। | प्रतीक चिन्ह: | अनुरोध के अनुसार |
| गारंटी: | एक वर्ष | आरेख: | हाँ |
| गोलाबारी: | 14 मिमी | अंत मोटाई: | 16 मिमी |
| संक्षारण भत्ता: | 1 मिमी | प्रयोग: | एलपीजी गैस भंडारण, स्टेशन टैंक |
| जीवनभर: | 20 वर्ष | हाइड्रोलिक परीक्षण दबाव: | 2.21एमपीए 22.1बार |
| प्रमुखता देना: | 50000 Liters LPG Storage Tank,Q345R LPG Storage Tank,DN2700mm lpg gas tank |
||
50m3 25tons LPG Cooking Gas Storage Tank 50000Liters LPG Storage Tank for Cambodia
Product Description
1. Storage medium of storage tanks : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of storage tanks : 5m³~200m³,2ton~100tons
3. Manufacturing standards of storage tanks : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for storage tanks equipments as follows,
lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
Specification of 25tons cooking gas tank
| Parameter of 25tons storage tanks | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 50000liters | Thickness of Shell | 14mm | |||
| Tank Material | Q345R | Thickness of End plate | 16mm | |||
| Overall Size | 9182*2728*3318mm | Tank Net Weight | 10640kg | |||
| Tank Diameter | 2700mm | Loading Capacity | 19950kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 15 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-80 | Safety Valve DN80 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||

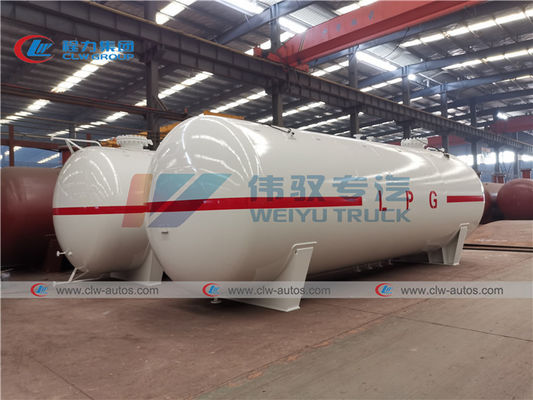

Production in Factory:

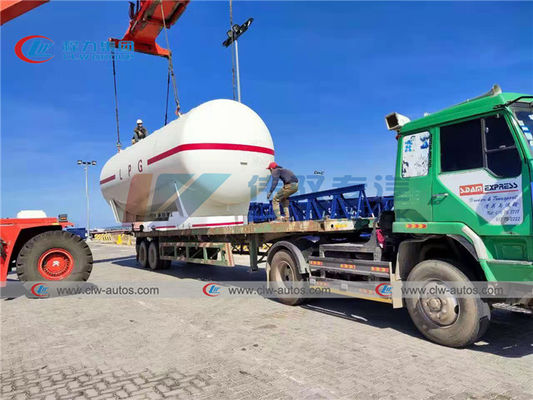

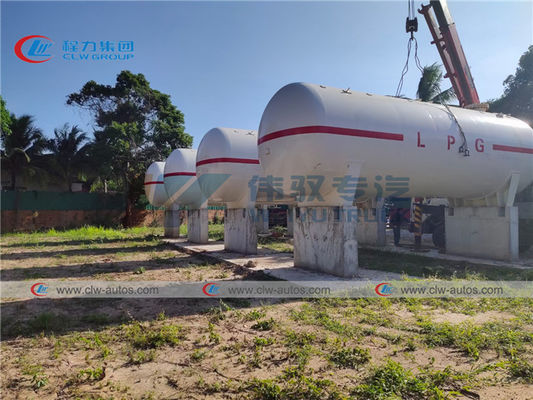

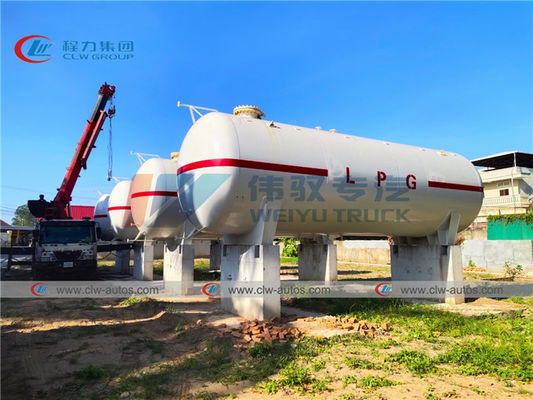

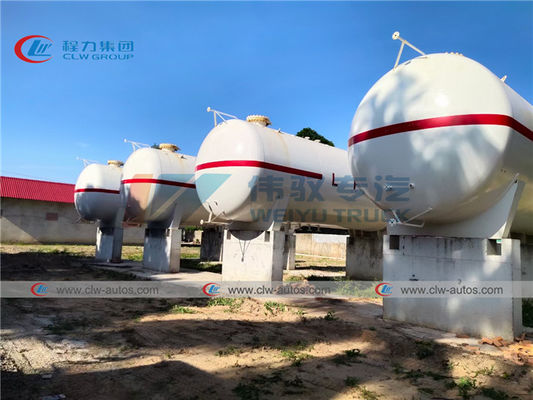

Arrived in Cambodia
FAQ
Q1: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q2: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
