उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Chassis Brand: | Howo, Dongfeng, Isuzu, Foton, JAC, etc. | Gearbox: | 8 Forward & 2 Reverse Gear |
|---|---|---|---|
| Tanker Volume: | 15m3, 16m3, 17m3, 18m3, 19m3, 20m3, etc. | टैंक सामग्री: | कार्बन स्टील, स्टेनलेस स्टील या एल्यूमीनियम मिश्र धातु |
| Tank Shape: | Square Round, Round | Transport Oil Type: | Diesel, Petrol, Gasoline, Oil, etc. |
| तेल खींचने का यंत्र: | चीनी प्रसिद्ध ब्रांड | तेल निकालने वाला: | चीनी प्रसिद्ध ब्रांड |
| Hose Reel with Filling Gun: | 15 Meter (Length Can Be Longer as Per Request) | Oil Vapor Recovery System: | Optional |
| प्रसव के समय: | 35 दिन | रंग: | स्वनिर्धारित |
| गारंटी: | 1 वर्ष | ||
| प्रमुखता देना: | Mobile Aviation Refueling Trucks,5cbm Aviation Refueling Trucks,JAC mobile refueling truck |
||
Product Description
1. Purpose: It used for helicopter refueling and mobile transporting aviation kerosene.

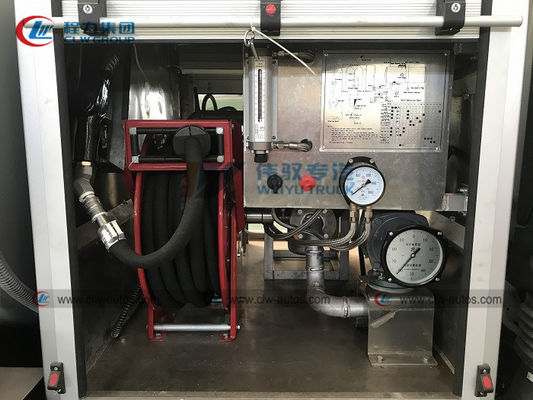

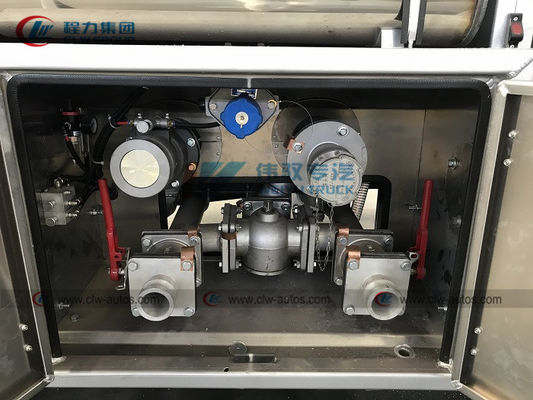

2. Main parts: Fuel pump, flow meter and filling gun etc.
3. Advantage: Our helicopter refueling truck have most competitive price.
Product Specification
| Condition | New condition/Left hand drive/4x2 | ||
| Chassis | Brand | JAC | |
| Curb weight(kg) | 4605 kg | ||
| Loading weight(kg) | 3000/4000/5000 kg | ||
| Wheelbase(mm) | 3800 mm | ||
| Front/Rear axle loading weight(kg) | 4000/7000 kg | ||
| Front/Rear overhang(mm) | 1430/2370 mm | ||
| Approach/Departure angle(°) | 18/12 | ||
| Max. driving speed(km/h) | 80 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brakes | Service brake: dual circuit compressed air brake. Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6pcs with one spare tire | |
| Specifications | 8.25-16 | ||
| Transmission | Manual type, 5 Forward and 1 reverse | ||
| Steering | Power steering, hydraulic steering with power assistance | ||
| Cab | It can accommodate three people, With Air conditioner | ||
| Engine | Brand | JAC | |
| Fuel type | Diesel | ||
| Displacement(ml) | 3856 ml | ||
| Power(kw) | 88 kw | ||
| Horsepower(HP) | 120 HP | ||
| Cylinder number | 4 pcs | ||
| Emission standard | Euro 3 | ||
| Upper & Equipment | |||
| Fuel tank | Capacity(cbm) | 5.0 cbm/6 cbm | |
| Tank material | Aluminium alloy | ||
| Thickness(mm) | 4.0/5.0mm | ||
| Compartment quantity(pcs) | 1 pcs | ||
| Filling medium | Aviation kerosene | ||
| Fuel pump | Quantity(pcs) | 1 pcs | |
| Model | China local brand | ||
| Type | Aluminium alloy | ||
| Notes | 1, Aluminium alloy safety valve 1 pc 2, Mechanical type Ladder 3, Filter system 4, Control system |
||
| Remarks | Customized LOGO design as per customer needs! | ||

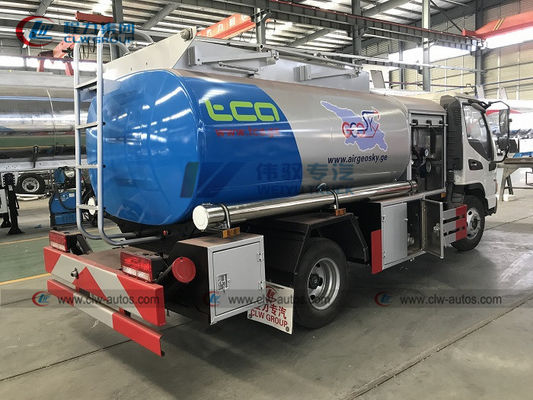

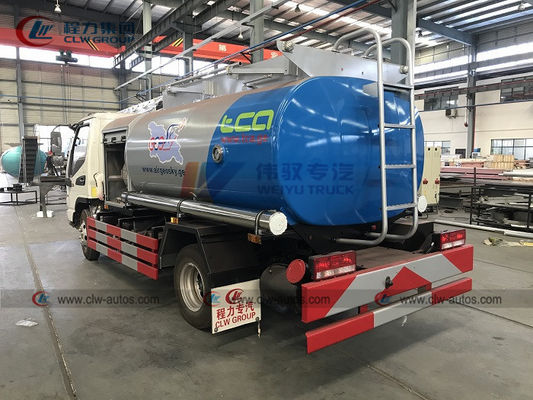

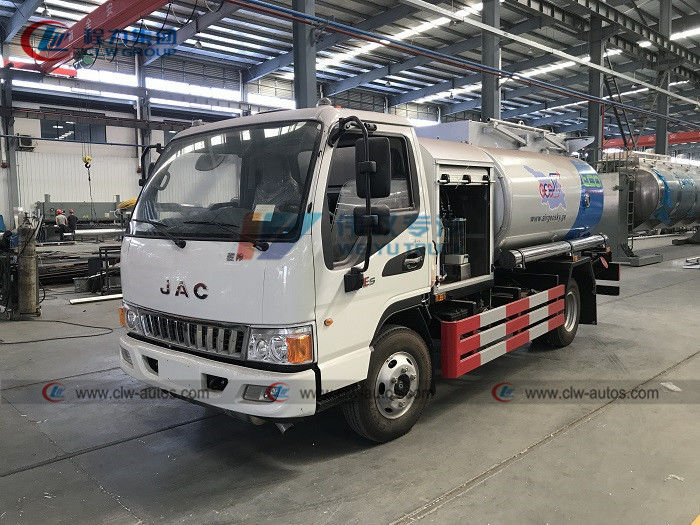

Reference Photos
Other Kinds of Fuel Dispenser Trucks
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Helicopter refueling truck I can order from your company?
A: We can supply different size helicopter refueling truck as client's request. Basically speaking, we can supply 5CBM to 20CBM type. Pls contact with us for more technical details and discussion.
Q2: What is your production standard of Helicopter Refueling Truck products?
A: China GB local standard.
Q3: Can we adopts International brand fuel pump for helicopter refueling truck?
A: Sure, we already cooperated with many international brand supplier.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
