उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Size Option: | 40tons,40mt,80cbm,80m3,8000Liters | मटेरेल: | कार्बन स्टील Q345R |
|---|---|---|---|
| भरने का माध्यम: | प्रोपेन,ब्यूटेन | Tank Diameter: | DN2400mm |
| डिजाइन दबाव:: | 1.77MPA | Level Gauge: | China Brand Megnatic Type or US brand Rocheseter |
| टैंक वाल्व: | कट-ऑफ वाल्व, सुई वाल्व, सुरक्षा वाल्व, रिटर्न वाल्व आदि। | LPG compressor: | optional with Chinese Brand, US brand |
| LPG pump: | optional with Chinese Brand, US brand | उत्पादन काल: | 35-45 दिन |
| सेवा का समय: | 15 साल | प्रतीक चिन्ह: | अनुरोध के अनुसार |
| लदान: | थोक शिपमेंट | Painting: | double layer painting |
| Special Treatment: | Waxing before shipment to prevent rust | ||
| प्रमुखता देना: | 80CBM LPG Gas Tank,Q345R LPG Gas Tank,1.77mpa lpg refilling station |
||

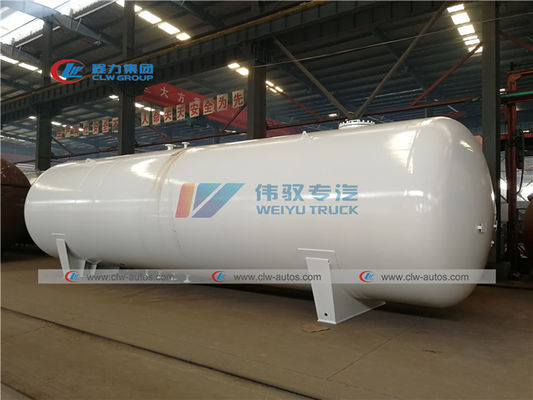

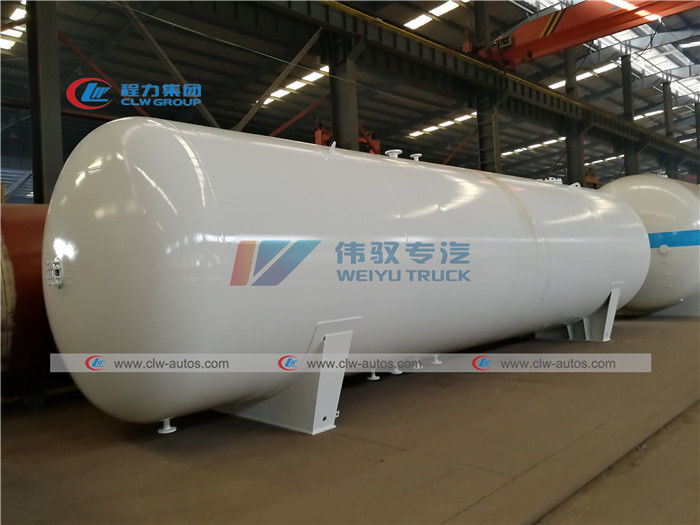

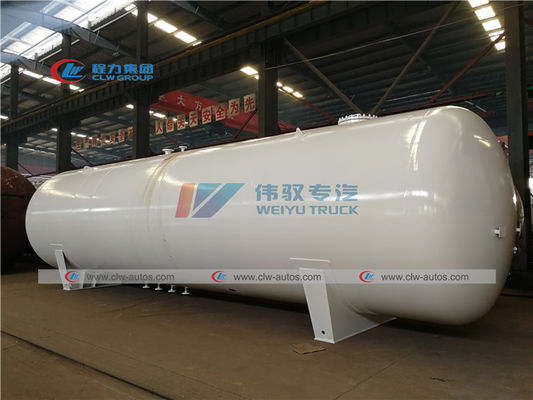

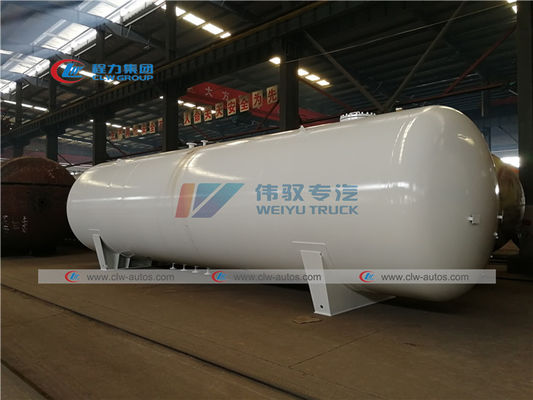

80cbm LPG Gas Tank 40tons LPG Gas Bullet Tank 40,000Liters Cooking Gas Refilling Station
Product Description
1. propane storage tank's storage medium: LPG, propane,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc
2. Available propane storage tank capacity: 5m³~200m³,2ton~100tons
3. Manufacturing standards of propane storage tank: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
| 80CBM LPG Gas Tank | |||
| Volume of Tank | 80 CBM | ||
| Filling Weight | 31920 kg | ||
| Tank Weight | 17000kg | ||
| Thickness of Shell (mm) | 14 mm | ||
| Thickness of End plate (mm) | 16 mm | ||
| Tank Diameter (mm) | 3100 mm | ||
| External Dimensions (mm) (length x width x height) | 11166 x 3132X3722 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa / 17.7Bar | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Drain Hole | DN50 | 1 | |
| Manhole | DN450 | 1 | |
| Air-out Pipe | DN50 | 1 | |
| Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. |
|||
