उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Size Option: | 35tons,35mt,70cbm,70m3,70000Liters | मटेरेल: | कार्बन स्टील Q345R |
|---|---|---|---|
| भरने का माध्यम: | प्रोपेन,ब्यूटेन | टैंक व्यास: | DN2700mm |
| डिजाइन दबाव:: | 1.77MPA | Level Gauge: | China Brand Megnatic Type or US brand Rocheseter |
| टैंक वाल्व: | कट-ऑफ वाल्व, सुई वाल्व, सुरक्षा वाल्व, रिटर्न वाल्व आदि। | प्रतीक चिन्ह: | अनुरोध के अनुसार |
| सेवा का समय: | 15 साल | LPG compressor: | optional with Chinese Brand, US brand |
| एलपीजी पंप: | वैकल्पिक | ||
| प्रमुखता देना: | 70000 Liters LPG Storage Tank,DN2700mm LPG Storage Tank,70m3 propane storage tanks |
||

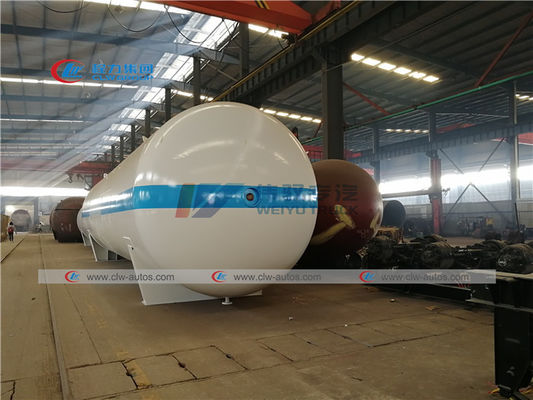

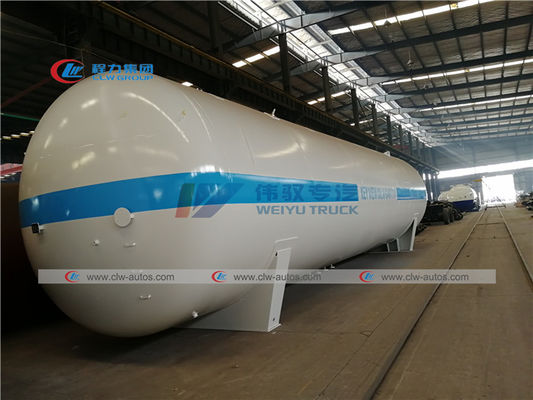

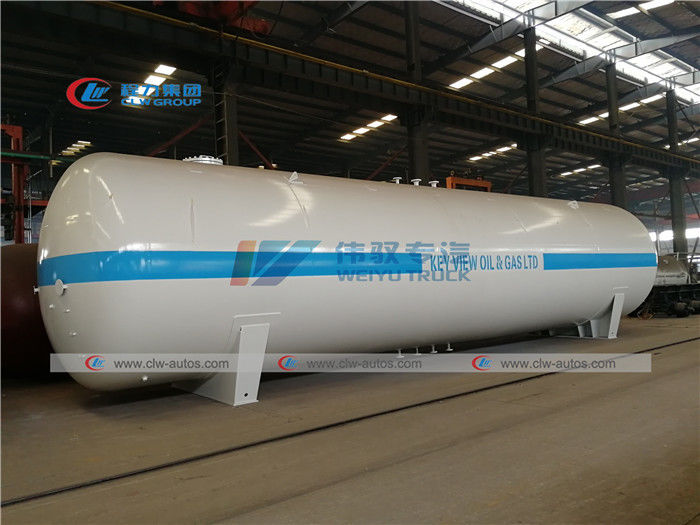

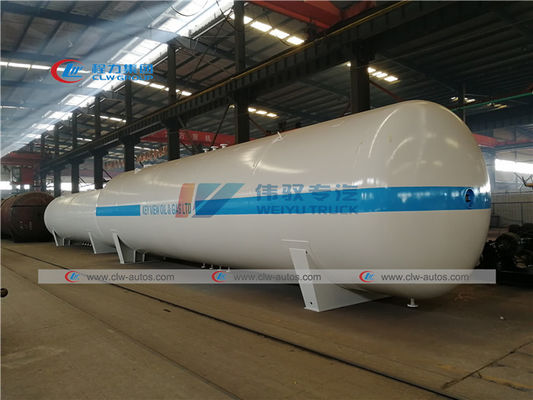

35tons LPG Storage Tank 70000 liters LPG storage tank for gas station with best price
Product Description
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg gas plant tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional for lpg gas plant equipments as follows,
lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
| 35tons LPG STORAGE TANK | |||
| Volume of Tank | 70,000Liters | ||
| Filling Weight | 27930 kg | ||
| Tank Weight | 14480kg | ||
| Thickness of Shell (mm) | 14 mm | ||
| Thickness of End plate (mm) | 16 mm | ||
| Tank Diameter (mm) | 2700 mm | ||
| External Dimensions (mm) (length x width x height) | 12714X2728X3318mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa / 17.7Bar | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Drain Hole | DN50 | 1 | |
| Manhole | DN450 | 1 | |
| Air-out Pipe | DN50 | 1 | |
| Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. |
|||
35Tons LPG storage Tank diagram for reference :
