उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| पहिये का आधार: | 3300 मिमी | ब्रांड: | फोरलैंड फोटन |
|---|---|---|---|
| Engine: | Yunei, Chaochai, etc | Gearbox: | WLT 5 Forward & 1 Reverse |
| लोड करने के तरीके: | रियर लोडिंग | Type: | Garbage Compacting |
| Discharging Way: | Hydraulic Tipping | नियंत्रण: | हाइड्रोलिक नियंत्रण |
| Control Position: | Truck back & cabin back | Compacting Ratio: | 0.6Ton/m3 ~ 0.8ton/m3 |
| Recycling time: | 14~18 second | Lifting Bin Type: | Steel Bin, Plastic Bin |
| सीवेज टैंक: | हाँ | Inside Painting: | Anti-rust Painting |
| Outside Painting: | Color Painting with Logo | ||
| प्रमुखता देना: | 6CBM City Garbage Compactor Truck,4 Ton Garbage Compactor Truck,forland 3 ton waste compactor truck |
||
Forland 3Tons ~4Tons Small Refuse Collection Garbage Compacting City Waste Delivery
Product Description
Dongfeng 5T compression garbage truck ihydraulic mechanism system:
The chamber body is made of high-quality carbon steel,

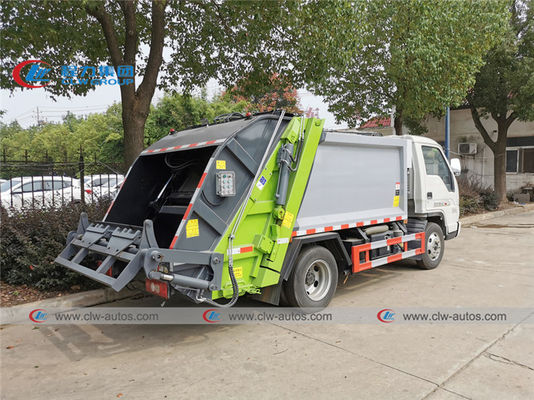

The loading mechanism is composed of bracket, connecting rod mechanism, cam, hook, etc.

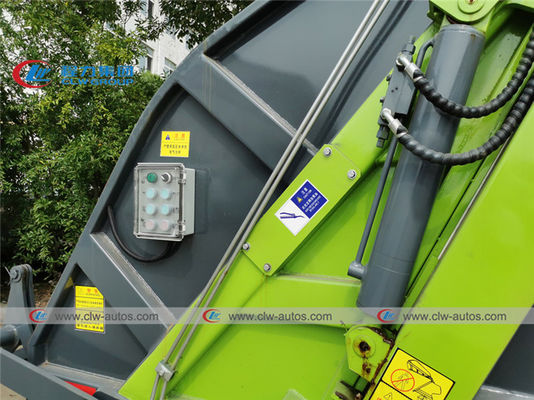

Under the action of the oil cylinder, the garbage in the garbage can is automatically turned over and poured into the hopper.
Specifications of 4-5 CBM Garbage Compactor Truck
| Dongfeng 6CBM Garbage Compactor Truck | |||||
| Overall Dimension | 6220×2050×2570 mm | Gross Vehicle Weight | 7360 kg | ||
| Curb Weight | 5400 kg | Loading Weight | 1830 kg | ||
| Wheel Base | 3308 mm | Front / Rear Axle | 5000 kg / 10000kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine | |||||
| Engine horsepower | 95HP, EURO II | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 7.00R16 (6 pieces with one spare) | ||||
| Garbage Bin | Capacity | 6CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 - 1/4 | ||||

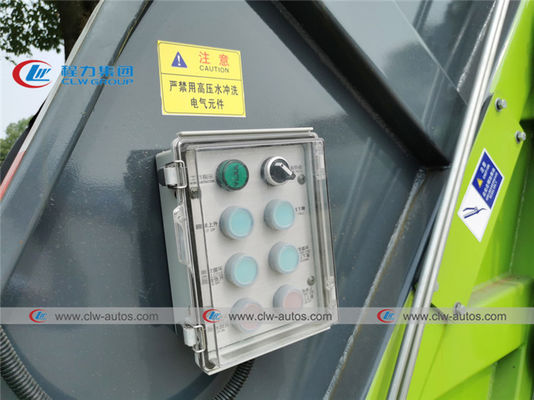

| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time＜14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request | |||||
Diagram
FAQ
Q1: What kinds of garbage trucks I can order from your company?
A: There are various sizes and types of garbage trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q3: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
