| टैंकर सामग्री: | Q345r, Q370r, Q420r, SA516 | टैंक क्षमता: | 60सीबीएम |
|---|---|---|---|
| Design Pressure: | 1.61MPa 16.1bar | संक्षारण भत्ता: | 1.0 मिमी |
| गारंटी: | 1 वर्ष | टैंक की मोटाई: | 12 मिमी |
| Axle Brand: | BPW, Fuwa, Hj, L1, Clw, York | निलंबन: | स्प्रिंग से बनी पत्ती |
| जीवनभर: | 15 साल | हाइड्रोलिक परीक्षण दबाव: | 2.21एमपीए 22.1बार |
| प्रतीक चिन्ह: | ग्राहक के अनुरोध के रूप में | ||
| प्रमुखता देना: | 59600 Liters LPG Tank Trailer,30 Tons LPG Tank Trailer,60cbm lpg tanker truck |
||

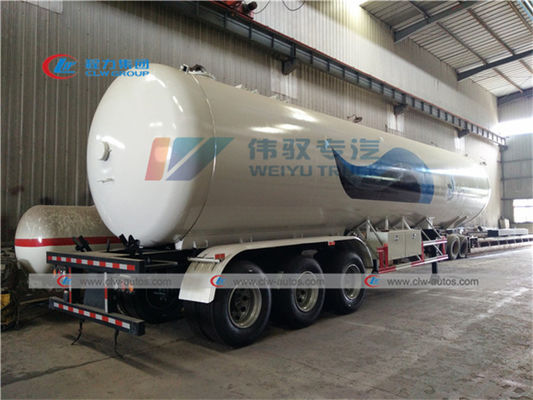

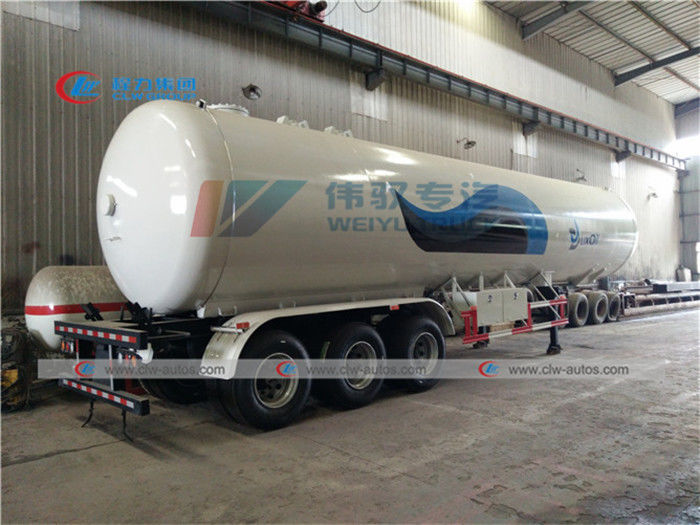

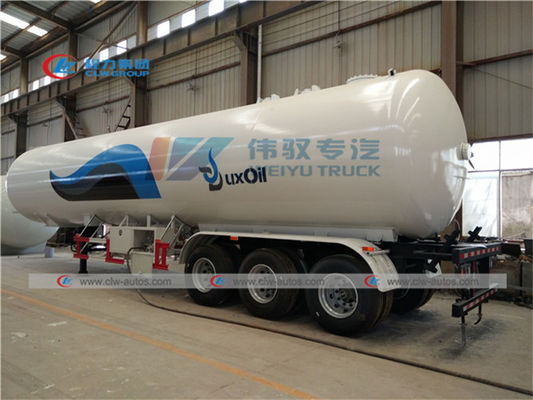

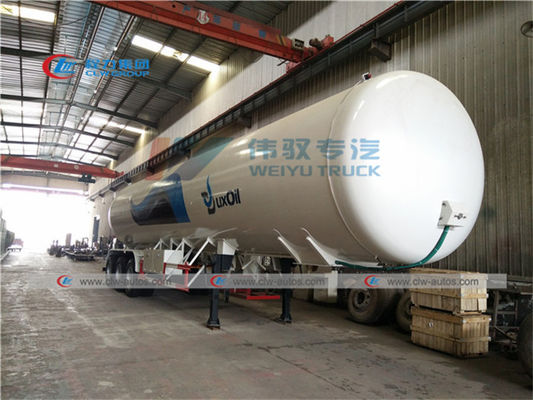

30tons LPG Tank Trailer 59600Liters Mobile Transport Tanker For Nigeria
Product Description
1) LPG Tanker Trailer is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
2) Manufacturing standards of lpg bridger truck tanker trailers : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
Specification
| Tanker Essential Information | ||
| Volume of Tank (cbm) | 60 | |
| Overall Dimensions(L*W*H)(mm) | 12740*2480*3800 | |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12354 | |
| Estimated Tare Weight (kg) | 15300 | |
| Payload(kg) | 20832 | |
| Total Weight(kg) | 36132 | |
| Wheelbase(mm) | 6800+1320+1320 | |
| Shell of Tanker | ||
| Products | Liquefied Petroleum Gas (propane) | |
| Fluid Property | Flammable | |
| Design Temperature(ºC) | 50ºC | |
| Design Pressure(MPa) | 1.61 | |
| Corrosion Allowance(mm) | 1.00 | |
| Weld Joint Factor | 1 | |
| Major Materials of Bearing Pressure | Tanker body:Q345,12mm, | |
| End plate:Q345R,12mm | ||
| Main beam:16Mn | ||
| Detection | ||
| Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC | |
| Flaw Detection | 100% Flaw detection | |
| Test Pressure(MPa) | 1.61 | |
| Hydraulic Test(MPa) | 2.1 | |
| Magnaflux Inspection | Aim at welding place that flaw detection can not cover | |
| Manhole (As Customer's Requirement) | ||
| Quantity | 1;on top | |
| Size | DN450 | |
| Safety Valve(As Customer's Requirement) | ||
| Quantity | 2 | |
| Location | On the top of tanker | |
| Size | DN80 | |
| Level Gauge | ||
| Type | Manuel Switch type | |
| Location | At the rear of the end dish | |
| Running System | ||
| Axles | 3*13T BPW | |
| Tire | 12R22.5 Tubeless tire ,8 with one spare tire | |
| Landing leg | JOST | |
| King Pin | #50 or #90 | |
| Control System | ||
| Emergency Cut-off Valves | 2 or 3 | |
| Ball Valve | 4 or 6 | |
| Liquid Gauge | 1 | |
| Pressure Indicating Thermometer | 1 | |
| Pressure Gage | 1 | |
Successful case in different countries
Related key words: 30tons LPG tank trailer, LPG transport tanker, LPG mobile transport Tanker, 30tons LPG tanker trailer
