उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Size Option: | 40m3,50m3,60m3,80m3,100m3 | मटेरेल: | कार्बन स्टील Q345R |
|---|---|---|---|
| भरने का माध्यम: | प्रोपेन,ब्यूटेन | Tank Diameter: | DN2400mm |
| डिजाइन दबाव:: | 1.77MPA | Level Gauge: | China Brand Megnatic Type or US brand Rocheseter |
| टैंक वाल्व: | कट-ऑफ वाल्व, सुई वाल्व, सुरक्षा वाल्व, रिटर्न वाल्व आदि। | प्रतीक चिन्ह: | अनुरोध के अनुसार |
| सेवा का समय: | 15 साल | ||
| प्रमुखता देना: | 40CBM LPG Gas Storage Tank,GB-150 LPG Gas Storage Tank,40m3 Propane Bullet Tank |
||

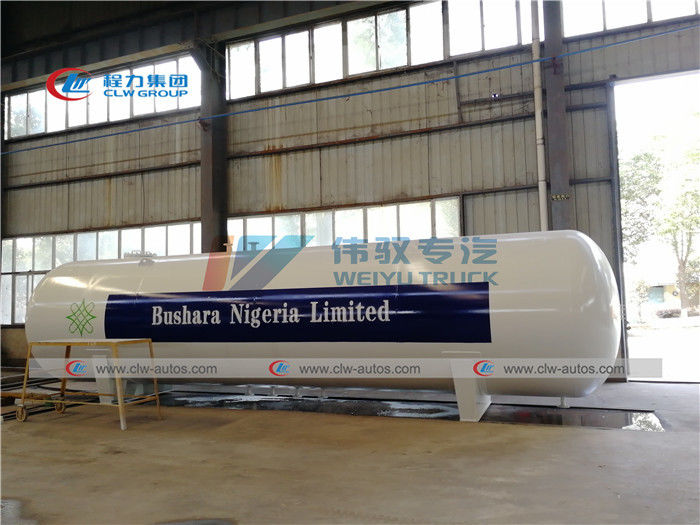

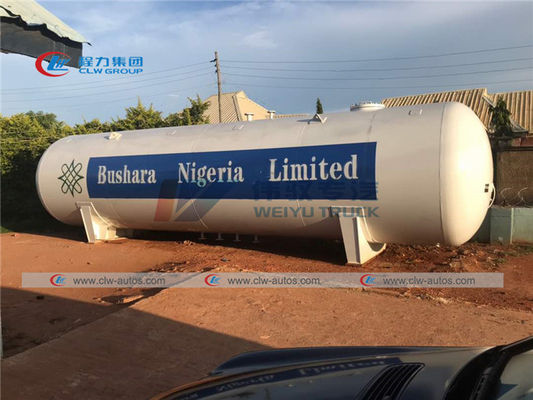

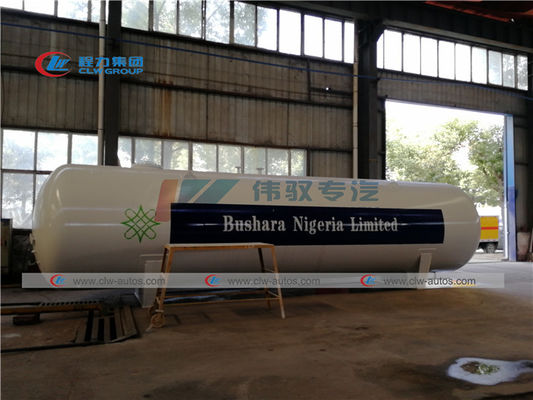

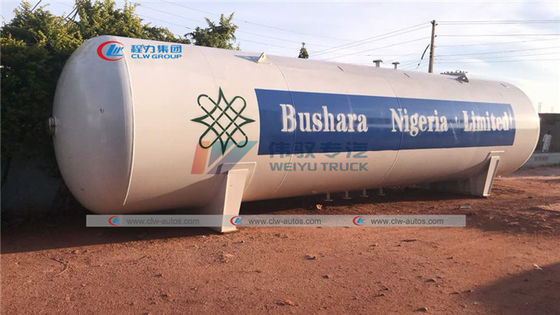

Propane Bullet Tank 40cbm LPG Storage Tank Cooking Gas Filling Plant
Product Description
1. Storage medium of lpg gas plant tank : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2.Tank sizes:5,000L, 20,000L, 30,000L, 40,000L, 50,000L, 60,000L, 80,000L, 100,000L, 120,000L etc.
3. Manufacturing standards of lpg gas plant tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4.Tank basic accessories included: valves, level meter, thermometer, pressure gauge etc.
5. Optional for lpg gas plant equipments as follows, lpg pump and motor,lpg compressor,volume flow meter,filling scales and lpg dispenser,ball valves,check valves,non-return valves,glass valve,strainer,by-pass valve and so on.
6.Maintenance-free operation with simple calibration and proof testing.
7.20 years guarantee against manufacturing defects.
| 40CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 40 CBM | ||
| Filling Weight | 15960 kg | ||
| Tank Weight | 9380kg | ||
| Thickness of Shell (mm) | 12 mm | ||
| Thickness of End plate (mm) | 14 mm | ||
| Tank Diameter (mm) | 2400 mm | ||
| External Dimensions (mm) (length x width x height) | 9270 x 2428X3018 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa / 17.7Bar | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Drain Hole | DN50 | 1 | |
| Manhole | DN450 | 1 | |
| Air-out Pipe | DN50 | 1 | |
| Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. | |||
