उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| टैंकर मात्रा: | 20CBM/20000लीटर | टैंक सामग्री: | Q345R/SA516 |
|---|---|---|---|
| डिजाइन दबाव: | 1.71एमपीए 1.77एमपीए 17.1बार, 17.7बार | लोडिंग सामग्री: | प्रोपेन/तरलीकृत पेट्रोलियम गैस/एलपीजी |
| मध्यम घनत्व: | 420Kg/m³, 450Kg/m³, 460Kg/m³, 480Kg/m³, 500Kg/m³, 520Kg/m³, 540Kg/m³। | यांत्रिक संपत्ति परीक्षण: | तन्यता, शक्ति, प्रभाव परीक्षण |
| खोल और सिर की मोटाई: | 10 मिमी, 12 मिमी | बिक्री के बाद सेवा: | स्पेयर पार्ट्स की आपूर्ति और इंजीनियर सहायता |
| रंग और लोगो: | ग्राहक अनुरोध के रूप में | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | 20000L LPG Gas Storage Tank,10T LPG Gas Storage Tank,20cbm LPG Skid Station |
||
Product Description
1. Storage medium: LPG, Liquid ammoina and Aether, etc.
2. LPG skid station capacity: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 10m³ LPG skid station.
3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008.
Product Specification
| Specification of 10tons 20000L lpg tank | |
| Volume of Tank | 20CBM(20,000liters) 10ton |
| Filling weight(Kg) | 10000 |
| Thickness of Shell (mm) | 10 mm |
| Thickness of Endplate (mm) | 12 mm |
| Tank Diameter (mm) | 1800 mm |
| Tank Dimensions (mm) (length x width x height) | 8174X1840X2410mm |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure | 1.71 MPa |
| Corrosion Allowance | 1 mm |
| Medium Density | 500-590 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
| Specification of LPG Pump and Motor | |
| Item | Specification |
| Specification of the Motor | |
| Model | Chinese famous brand |
| Revolving speed | 1470 r/min |
| Power | 5.5 kw |
| Voltage | 380 V |
| Protection grade | Anti explosive |
| Specification of the hydrocarbon Pump | |
| Model | YQB15-5 |
| Medium | Liquid petroleum gas |
| Speed | 15 m3/h |
| Input and Output Diameter | 50 mm |
| Working pressure | 2.0 Mpa |
| Working temperature | -40ºC- 50ºC |
| Material | carbon steel |

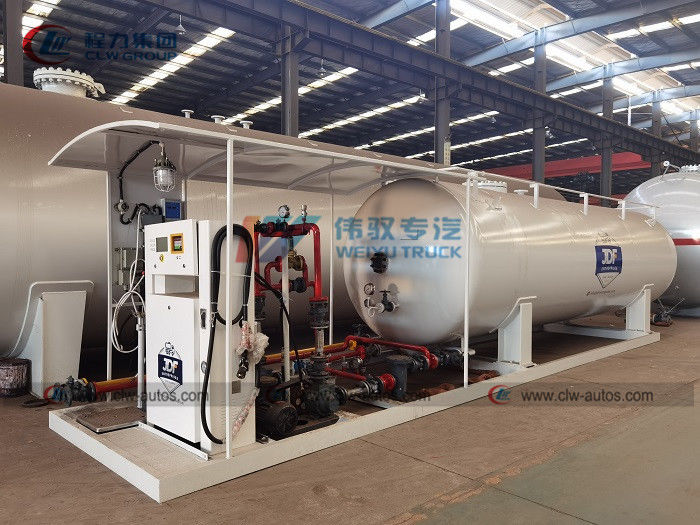

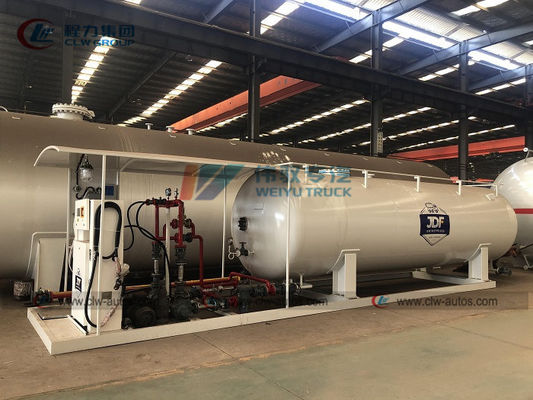

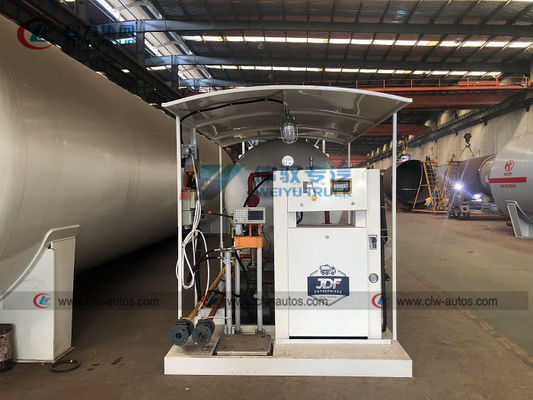

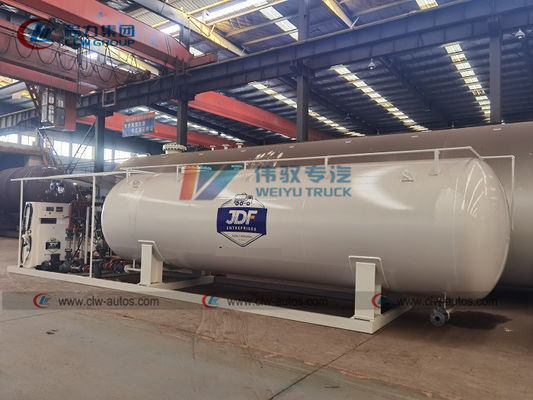

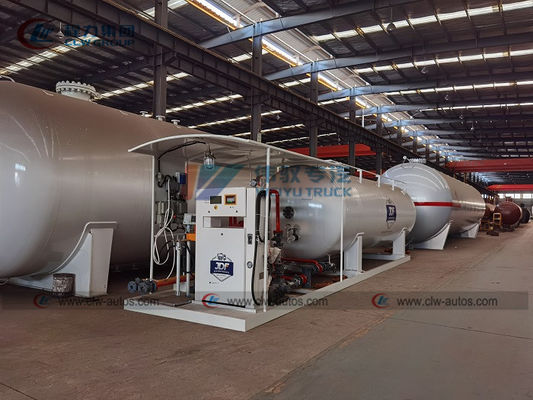

Reference Photos
We supply package solution for lpg station building as follows
Production Process
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes. The biggest size tank we ever provided is 200m3 high pressure LPG storage tank
