उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Size Option: | 40m3,50m3,60m3,80m3,100m3 | मटेरेल: | कार्बन स्टील Q345R |
|---|---|---|---|
| भरने का माध्यम: | प्रोपेन,ब्यूटेन | टैंक व्यास: | DN2700mm |
| डिजाइन दबाव:: | 1.77MPA | स्तर नापने के लिए गेज: | रोटोगेज या मेग्नेटिक प्रकार |
| टैंक वाल्व: | कट-ऑफ वाल्व, सुई वाल्व, सुरक्षा वाल्व, रिटर्न वाल्व आदि। | प्रतीक चिन्ह: | अनुरोध के अनुसार |
| सेवा का समय: | 15 साल | ||
| प्रमुखता देना: | 100m3 LPG Bullet Tank,80m3 LPG Bullet Tank,60m3 lpg storage tank |
||

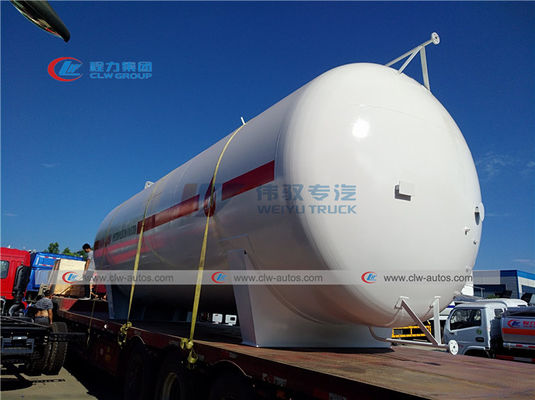

Factory Sales 50m3 60m3 80m3 100m3 LPG Bullet Tank LPG Storage Tank
Product Description
20-25MT Propane Gas Station Tanks 100m3 LPG Storage Tank
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.

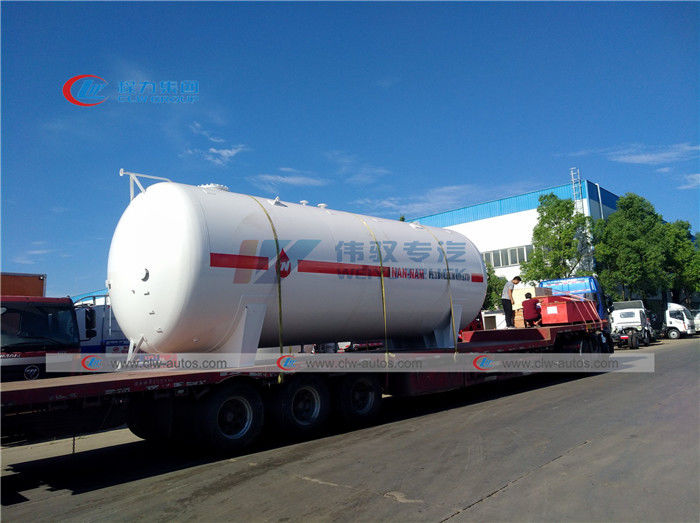

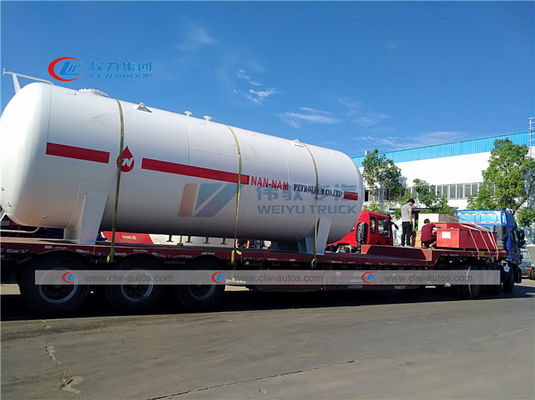

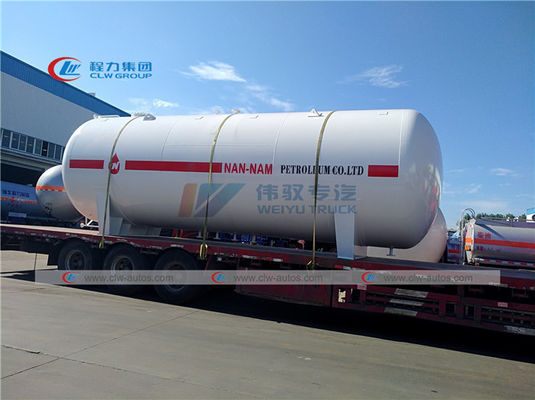

Factory Sales 50m3 60m3 80m3 100m3 LPG Bullet Tank LPG Storage Tank
| 50 CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 50 CBM | ||
| Filling Weight | 25000 kg | ||
| Tank Weight | 10640kg | ||
| Thickness of Shell (mm) | 14 mm | ||
| Thickness of End plate (mm) | 16 mm | ||
| Tank Diameter (mm) | 2700 mm | ||
| External Dimensions (mm) (length x width x height) | 9182 x X2728X3318 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa / 17.7Bar | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Drain Hole | DN50 | 1 | |
| Manhole | DN450 | 1 | |
| Air-out Pipe | DN50 | 1 | |
| Safety Valve Pipe | DN80 | 2 | |
Safety Accessories (Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. |
|||
