| Spreadig width: | 4000mm | Asphalt sprayer volume: | 0.5~3.0L/m3 |
|---|---|---|---|
| Spraying Medium: | Hot bitumen, hot modified bitumen, Emulsified asphalt | Size of asphlat volume: | 8m3 |
| Size of gravel volume: | 12m3 | Burner: | Italy brand G20 |
| variable displacement piston pump: | A11V060EP2D/10R | Asphalt pump: | TG GP185-125/Belgium brand |

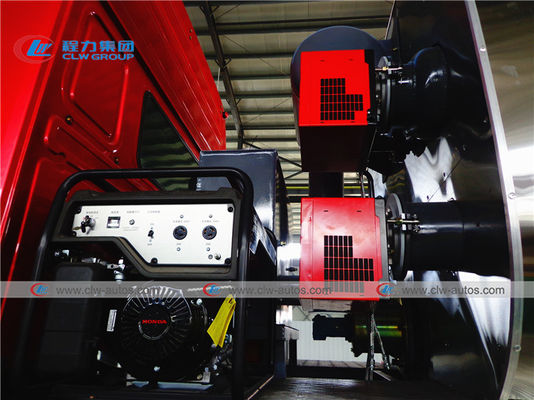

| Asphalt motor: | L2F107W2P2 chinese brand or XM05-90-8G-D40 italy | generator: | Honda 6kw gasoline generator |
| Control system: | CLW-32-01 from germany | Rear monitor: | 7 ", color screen real image |
| Mixer motor: | Eaton/USA brand | Truck brand: | Howo,Shacman,ISUZU,Dongfeng,FAW |
| प्रमुखता देना: | Howo asphalt tank,8X4 asphalt tank,371hp asphalt tank |
||
★Accurate spraying amount, perfect realization of asphalt spraying three overlapping, good uniformity.
★ Intelligent control of sprinkling (sprinkling), real-time monitoring of sprinkling quantity and speed, closed-loop control
★ Full computer touch screen operation, equipped with video monitoring system, can observe the whole working process at any time;
★ Reliable performance and convenient operation
★Zero-start in-line spraying (strong spraying system and asphaltene in-line spraying system)
★ The control system adopts modular design (low failure rate, quick and easy maintenance).

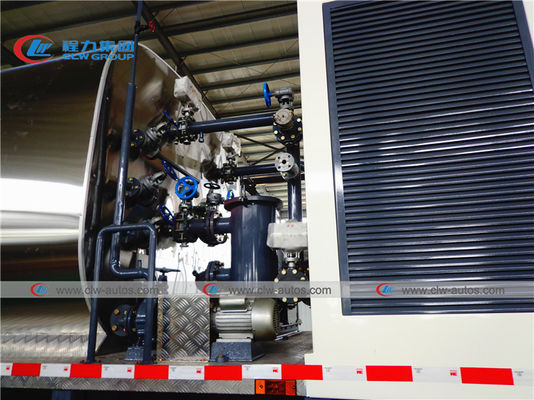

★The most effective heating system and circulating heat preservation system ensure the unimpeded flow of pipes and nozzles without diesel cleaning
★ Equipped with a flexible asphalt hand spray system, it can spray asphalt on special parts of the road

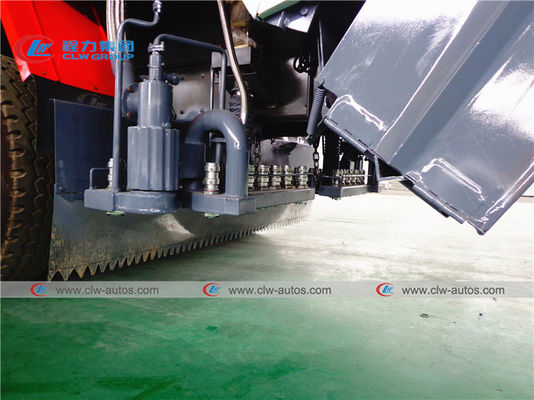

★The nozzle and the feed door are fully pneumatic, and each feed door and the feed door are individually controlled by the computer
★ The width of the cloth can be adjusted at any time during the process of spreading
★With self-suction efflux function, it can add self-discharge asphalt to improve work efficiency
★Equipped with a system, in case of failure of the main control system, can manually sprinkle (scatter) cloth
★ Compact structure, beautiful appearance, flexible u-turn at high speed.
