उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | एलपीजी गैस | Tank Capacity: | 50000 Liter |
|---|---|---|---|
| Loading Weigh: | 20Ton to 25Ton | धुरा: | 3 एक्सल |
| Axle Brand: | FUAW or BPW | निलंबन: | स्प्रिंग से बनी पत्ती |
| थका देना: | 12R22.5 | Tank Material: | Q345R, Q370R |
| Design Pressure: | 16.1Mpa | ||
| प्रमुखता देना: | 50cbm LPG Gas Tanker Truck,20t LPG Gas Tanker Truck,50000l LPG Gas Tanker Truck |
||
50CBM 20Ton Propane Gas Transport Tank Semi Trailer with Rochester level Gauge
Description:
1. Tank Design Standard of 25tons lpg tanker trailer : Chinese GB Standard or American ASME Standard.
2. Factory direct exporting, with high quality and lower price.
3. We have the biggest LPG trailer and LPG truck in the world:
a. we have the biggest LPG trailer in the world, the max. volume is 61.9 cbm; low transport costs, more profit.
b. we have the biggest 8x4 LPG truck in China, the max volume is 37cbm;
c. our LPG storage tank ranged from 5cbm to 200cbm. both on the floor ones and in the ground ones.
d. we have mobile filling station from capacity 5cbm to 120cbm.
Specification
| Tanker Essential Information | |
| Volume of Tank (cbm) | 49.6 |
| Overall Dimensions(L*W*H)(mm) | 12740*2480*3800 |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2300*12*12354 |
| Estimated Tare Weight (kg) | 15300 |
| Payload(kg) | 20832 |
| Total Weight(kg) | 36132 |
| Wheelbase(mm) | 6800+1320+1320 |
| Shell of Tanker | |
| Products | Liquefied Petroleum Gas (propane) |
| Fluid Property | Flammable |
| Design Temperature(ºC) | 50ºC |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1.00 |
| Weld Joint Factor | 1 |
| Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
| End plate:Q345R,12mm | |
| Main beam:16Mn | |
| Detection | |
| Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC |
| Flaw Detection | 100% Flaw detection |
| Test Pressure(MPa) | 1.61 |
| Hydraulic Test(MPa) | 2.1 |
| Magnaflux Inspection | Aim at welding place that flaw detection can not cover |
| Manhole (As Customer's Requirement) | |
| Quantity | 1;on top |
| Size | DN450 |
| Safety Valve(As Customer's Requirement) | |
| Quantity | 2 |
| Location | On the top of tanker |
| Size | DN80 |
| Level Gauge | |
| Type | Manuel Switch type |
| Location | At the rear of the end dish |
| Running System | |
| Axles | 3*13T BPW |
| Tire | 12R22.5 Tubeless tire ,8 with one spare tire |
| Landing leg | JOST |
| King Pin | #50 or #90 |

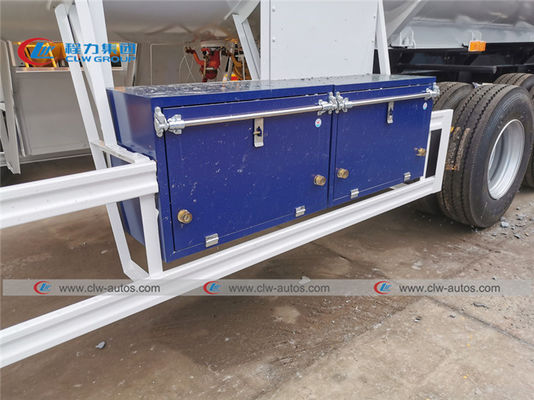

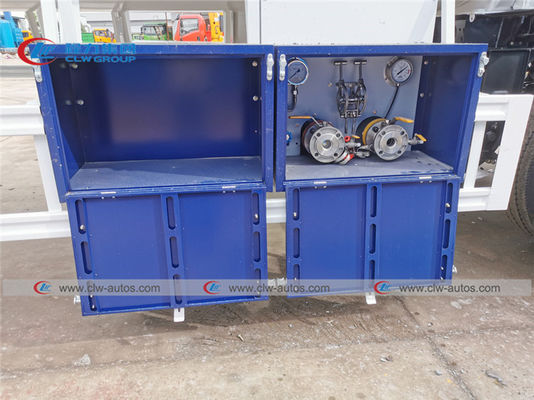

| Control System | |
| Emergency Cut-off Valves | 2 or 3 |
| Ball Valve | 4 or 6 |
| Liquid Gauge | 1 |
| Pressure Indicating Thermometer | 1 |
| Pressure Gage | 1 |

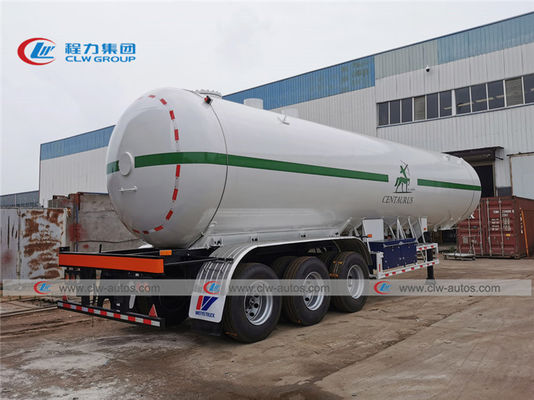

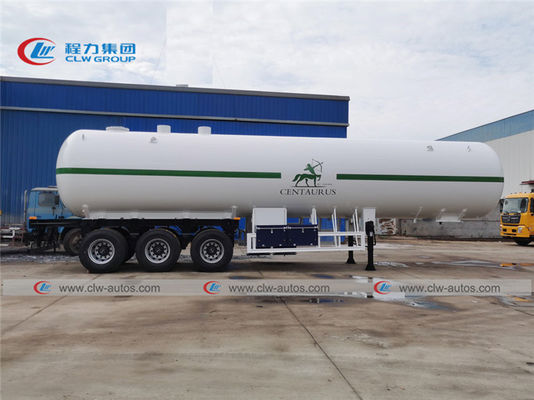

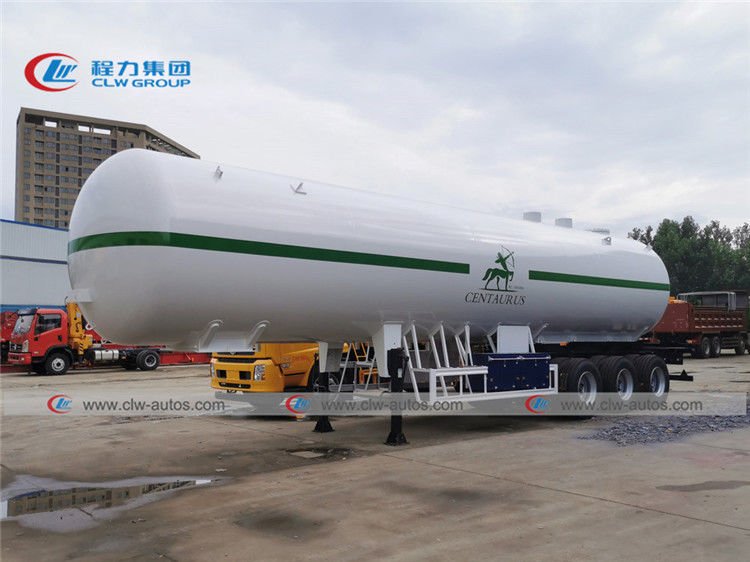

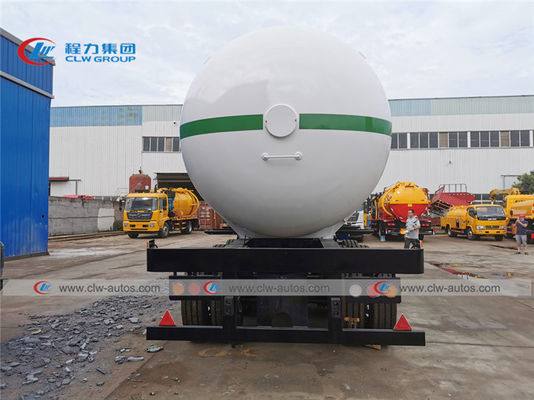

Trailer Photos
