उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| सामग्री: | स्टेनलेस स्टील 304 | सहायक इंजन: | इसुज़ु ब्रांड |
|---|---|---|---|
| पंखा: | रखरखाव मुक्त | रियर वार्निंग लाइट: | हाँ |
| वैक्यूम सक्शन: | टायर के पीछे | ब्रश: | 4 इकाइयां |
| प्रयोग: | शहर की स्वच्छता | रंग: | ग्राहक के अनुरोध के अनुसार अनुकूलित लोगो पेंटिंग |
| प्रमुखता देना: | street sweeper vacuum truck,mechanical sweeper truck |
||

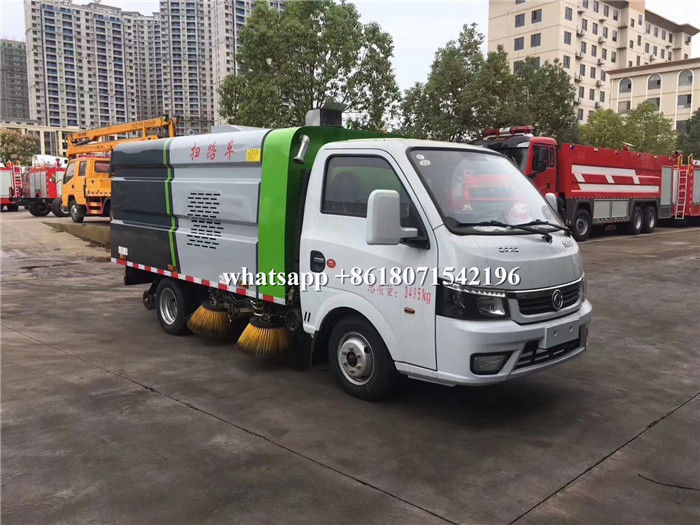

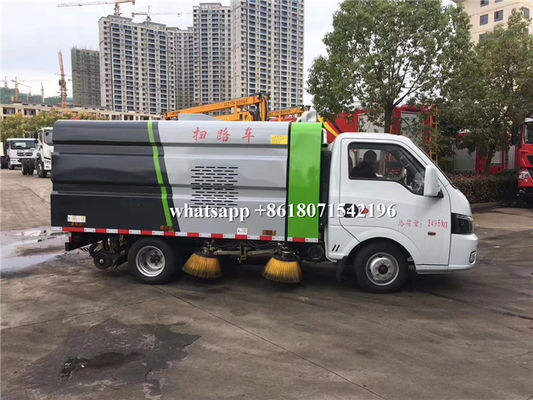

Dongfeng Mini Road Sweeper Truck 2.5m3 Street Vacuum Cleaner Truck
Product Description
This equipment is made from our company according to many years of road maintenance construction experience, and combined with the actual needs of customers.It is a kind of vacuuming equipment independently developed and produced for minor repair and maintenance construction of irrigation joints and pits.The utility model has the characteristics of simple operation, high dust absorption efficiency and continuous operation.Widely used in municipal, highway, national and provincial arterial road construction dust, particle recovery operations.
Specifications of 2.5CBM Changan Road Sweeper Truck
| 2CBM Road Sweeper Truck | ||||||||
| Condition | New condition/Right hand drive/4x2 | |||||||
| Chassis | Brand | Changan | ||||||
| Curb weight(kg) | 2300kg | |||||||
| Wheelbase(mm) | 2600 mm | |||||||
| Dimensions(mm) | 4650 x 1750 x 2250 mm | |||||||
| Overhang (front/rear) (mm) | 1032 / 1868 | |||||||
| Wheel track (front/rear) (mm) | 1506 / 1404 | |||||||
| Approach/Departure angle(°) | 19/12 | |||||||
| Axle Load(kg) | 1500/2000 | |||||||
| Max. driving speed(km/h) | 90 km/h | |||||||
| Tire | Specifications | 6pcs with one spare tire | ||||||
| Number | 165R14 | |||||||
| Clutch | Reinforced diaphragm clutch | |||||||
| Gear box | Manual type, 5 Forwards & 1 Reverse | |||||||
| Cabin | Left Hand Driving, 2 Passenger Allowed, with A/C | |||||||
| Engine | Model | Diesel Engine, 4 Cylinders | ||||||
| Power(kw)/Horsepower(HP) | 65 kw/88 HP | |||||||
| Emission standard | Euro 3 | |||||||
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|||||||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||||||
| Sweeping System | ||||||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | |||||
| Tank volume(cbm) | 2 CBM | |||||||
| Water tank | Tank material | Stainless steel 304 | ||||||
| Tank volume(cbm) | 0.5 CBM | |||||||
| Auxiliary engine | Model | ISUZU Engine 77HP | ||||||
| Power(kw) | 28 kw | |||||||
| Brush | Quantity(pc) | 4 pcs | ||||||
| Working area(m) | 2.7-2.8 m | |||||||
| Remarks |
1, With water sprayer-bar 2, Rear vacuum cleaner 3, Blower 4, Rear LED pilot lamp 5, Self unloading box body 6, The color will be designed on basis of your requirements. |
|||||||
Details
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q2: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
