उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| स्थिति: | नया | डिज़ाइन: | 1.71 एमपीए |
|---|---|---|---|
| हाइड्रोलिक परीक्षण दबाव: | 2.21एमपीए 22.1बार | लोडिंग सामग्री: | प्रोपेन/तरलीकृत पेट्रोलियम गैस/एलपीजी |
| पंप ब्रांड: | कॉर्केन, ब्लैकमर, चीनी ब्रांड | रंग: | अनुकूलित लोगो |
| जीवनभर: | 20 वर्ष | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | transporting large propane tanks,large lpg storage tanks |
||

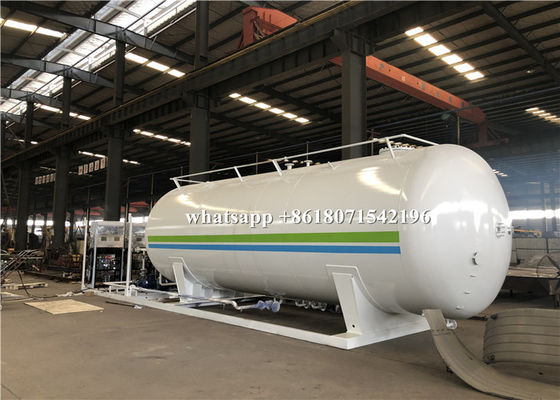

LPG Cooking Gas Cylinder Plant 30000L LPG Mobile Filling Station 30cbm LPG Skid Station with 2 Filling Dispenser
Product Description
1. Motor of mobile filling station: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
2. Pipeline of mobile filling station: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
3. Explosive Proof Central Control Panel for whole station system
4. Other Equipment of mobile filling station: Sunshade for filling area, Leakage Detector,ex-proof lamp,water sprinkler system
Technical Specifications
| Specification of 15tons 30000L mobile gas station | |
| Volume of Tank | 30CBM(30,000liters) 15ton |
| Filling weight(Kg) | 15000 |
| Thickness of Shell (mm) | 10 mm |
| Thickness of Endplate (mm) | 12 mm |
| Tank Diameter (mm) | 1800 mm |
| Tank Dimensions (mm) (length x width x height) | as designed |
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
| Filling Medium | Liquefied Petroleum Gas ( Propane) |
| Design Pressure | 1.71 MPa |
| Corrosion Allowance | 1 mm |
| Medium Density | 500-590 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
| Specification of LPG Pump and Motor | |
| Item | Specification |
| Specification of the Motor | |
| Model | Chinese famous brand |
| Revolving speed | 1470 r/min |
| Power | 5.5 kw |
| Voltage | 380 V |
| Protection grade | Anti explosive |
| Specification of the hydrocarbon Pump | |
| Model | YQB15-5 |
| Medium | Liquid petroleum gas |
| Speed | 15 m3/h |
| Input and Output Diameter | 50 mm |
| Working pressure | 2.0 Mpa |
| Working temperature | -40ºC- 50ºC |
| Material | carbon steel |
Detail Photos
Successful cases
Our Service
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Q1: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q2: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
