उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| टैंक का उद्देश्य: | एलपीजी गैस भंडारण, स्टेशन टैंक | Tank Volume: | 5cbm-200cbm, Usually 50m³,60m³,80m³,100m³,120m³, Etc |
|---|---|---|---|
| टैंक क्षमता: | 2टन-100टन; आमतौर पर 20 टन, 30 टन, 40 टन, 50 टन, 60 टन, आदि। | Tanker Material: | Q345R, Q370R, SA516Gr70, etc. |
| रंग और लोगो: | ग्राहक के अनुरोध के अनुसार | जीवनभर: | 20 वर्ष |
| डिजाइन तापमान: | -20 ℃ ~ 50 ℃ | Overall Size: | 11166*3132*3722mm |
| Level Gauge: | Megnatic Type | आरेख: | हाँ |
| प्रमुखता देना: | transporting large propane tanks,large lpg storage tanks |
||

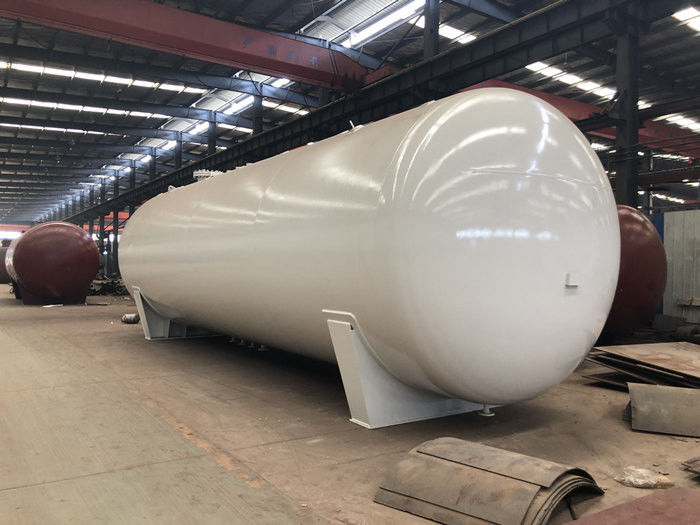

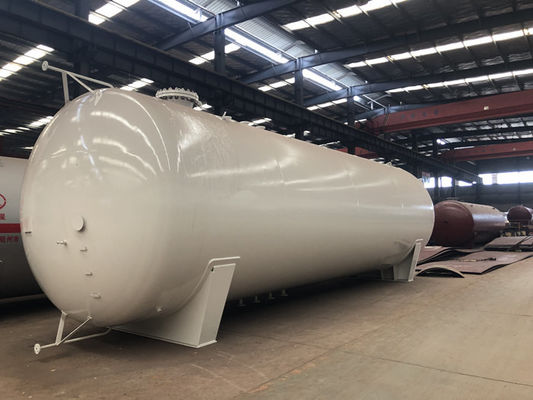

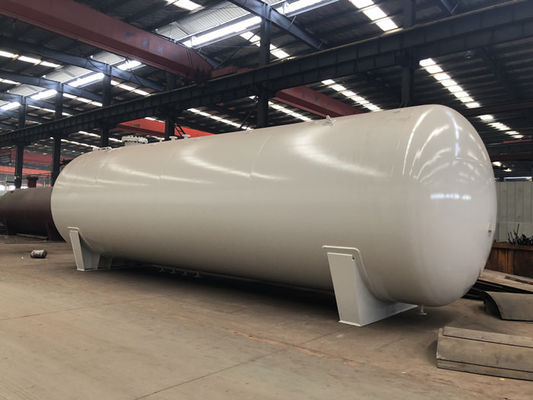

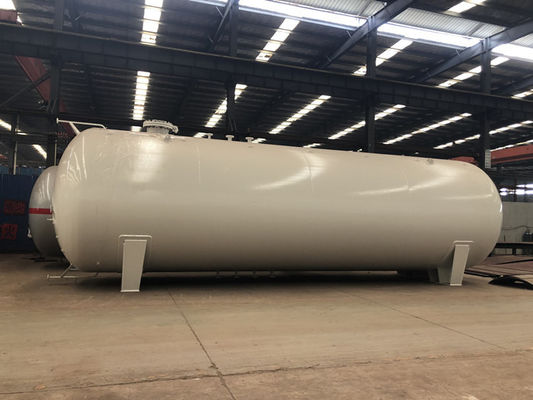

Factory 80000litres Liquefied Petroleum Gas Tank 40 Metric Tons Propane Tanker
Product Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc.
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
| Technical Specification | ||||
| Item | Name | Unit | Parameter | |
| 1 | Product model | / | LPG storage tank | |
| 2 | Vessel type | / | On the ground | |
| 3 | Tank Volume | m3 | 80 | |
| 4 | Filling medium | / | LPG / propane gas | |
| 5 | Filling coefficient | Kg/ m³ | 420 | |
| 6 | Tanker material | / | ASME SA516Gr70 | |
| 7 | Overall dimension | mm | 11166*3132*3722 | |
| 8 | Tank inner diameter | mm | 3100 | |
9 |
Thickness | End plates | mm | 18 |
| Shell body | mm | 16 | ||
| 10 | Curb weight | kg | 17000 | |
| 11 | Filling medium weight | kg | 31920 | |
| 12 | Corrosion allowance | mm | 1 | |
| 13 | design pressure | Mpa | 1.71 | |
| 14 | Hydrostatic test pressure | MPa | 2.22 | |
| 15 | Designing temperature | °C | -19~50 | |
| 16 | Produce Manufacturing standards | / | GB150-20 | |
| 17 | Certification | / | ISO 9001-2015 | |
| Production process control | 1. Steel Plate Cutting &Rolling | |||
| 2. Tanker Body Welding | ||||
| 3. X-ray Welding Seam Detection | ||||
| 4. Whole Tanker Heat Treatment | ||||
| 5. Rust, Sand Blasting, Puttying | ||||
| 6. Water Pressure Test | ||||
| 7. Painting: primer, finish, lacquer | ||||
Our Service
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
