उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Tanker Material: | Q345R, Q370R, SA516Gr70, etc. | Tank Volume: | 5cbm-200cbm, Usually 50m³,60m³,80m³,100m³,120m³, Etc |
|---|---|---|---|
| डिजाइन तापमान: | -20 ℃ ~ 50 ℃ | रंग और लोगो: | ग्राहक के अनुरोध के अनुसार |
| जीवनभर: | 20 वर्ष | टैंक क्षमता: | 2टन-100टन; आमतौर पर 20 टन, 30 टन, 40 टन, 50 टन, 60 टन, आदि। |
| संपूर्ण आकार: | 10962*2728*3318mm | टैंक का उद्देश्य: | एलपीजी गैस भंडारण, स्टेशन टैंक |
| Level Gauge: | Megnatic Type | आरेख: | हाँ |
| प्रमुखता देना: | transporting large propane tanks,large lpg storage tanks |
||

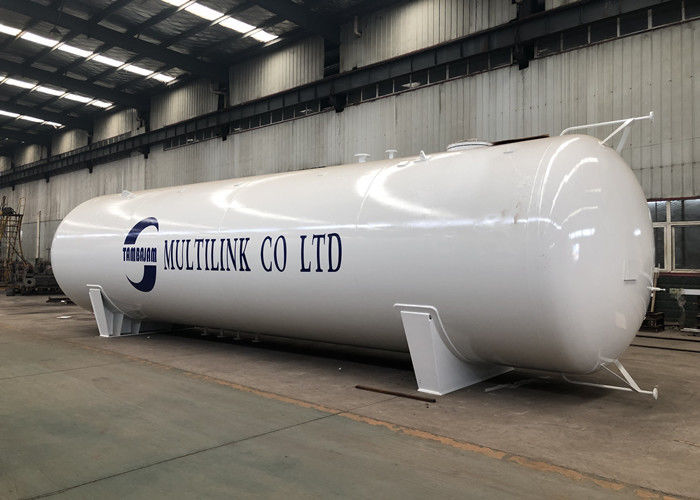

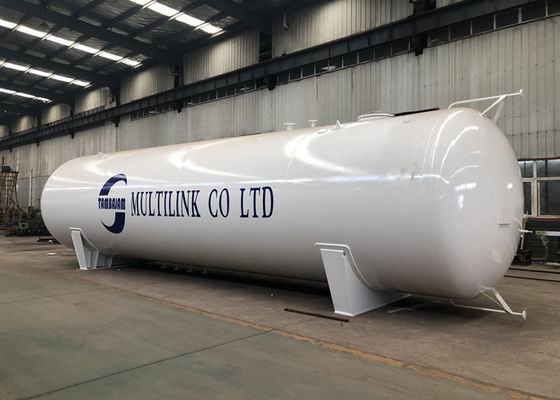

60000 Litres LPG Station 60cbm Bulk Gas Storage ASME Stamp Tanker
Our Service
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Reasonable price and good quality
Quick delivery and shipment
| Technical Specification | ||||
| Item | Name | Unit | Parameter | |
| 1 | Product model | / | LPG storage tank | |
| 2 | Vessel type | / | On the ground | |
| 3 | Tank Volume | m3 | 60 | |
| 4 | Filling medium | / | LPG / propane gas | |
| 5 | Filling coefficient | Kg/ m³ | 420 | |
| 6 | Tanker material | / | Q345R | |
| 7 | Overall dimension | mm | 10962*2728*3318 | |
| 8 | Tank inner diameter | mm | 2700 | |
9 |
Thickness | End plates | mm | 16 |
| Shell body | mm | 14 | ||
| 10 | Curb weight | kg | 12750 | |
| 11 | Filling medium weight | kg | 23940 | |
| 12 | Corrosion allowance | mm | 1 | |
| 13 | design pressure | Mpa | 1.71 | |
| 14 | Hydrostatic test pressure | MPa | 2.22 | |
| 15 | Designing temperature | °C | -19~50 | |
| 16 | Produce Manufacturing standards | / | GB150-20 | |
| 17 | Certification | / | ISO 9001-2015 | |
| Production process control | 1. Steel Plate Cutting &Rolling | |||
| 2. Tanker Body Welding | ||||
| 3. X-ray Welding Seam Detection | ||||
| 4. Whole Tanker Heat Treatment | ||||
| 5. Rust, Sand Blasting, Puttying | ||||
| 6. Water Pressure Test | ||||
| 7. Painting: primer, finish, lacquer | ||||
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
