उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| टैंकर सामग्री: | Q345r, Q370r, Q420r, SA516 | टैंक की मोटाई: | 12 मिमी |
|---|---|---|---|
| डिजाइन दबाव: | 1.61एमपीए, 16.1 बार/पीएसआई | संक्षारण भत्ता: | 1.0 मिमी |
| प्रतीक चिन्ह: | ग्राहक के अनुरोध के रूप में | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | propane service truck,fuel transport trucks |
||

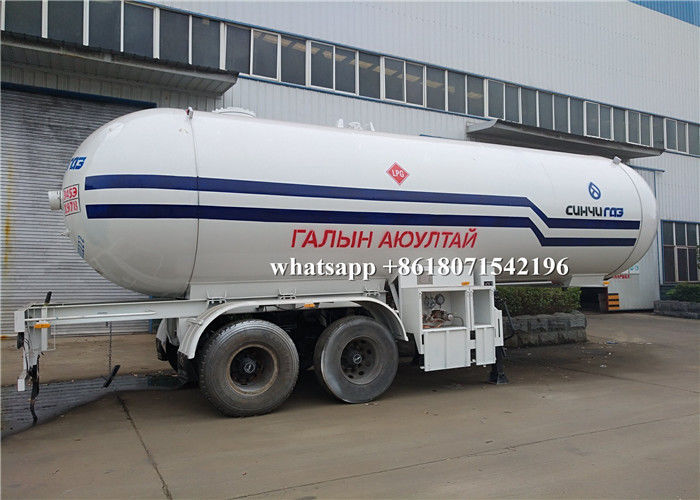

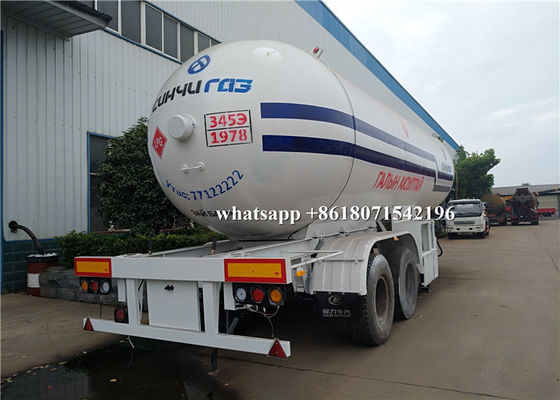

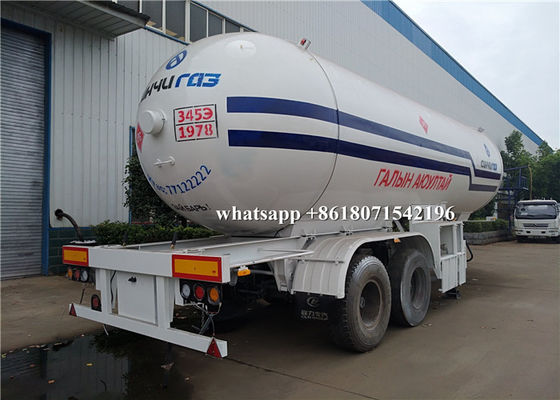

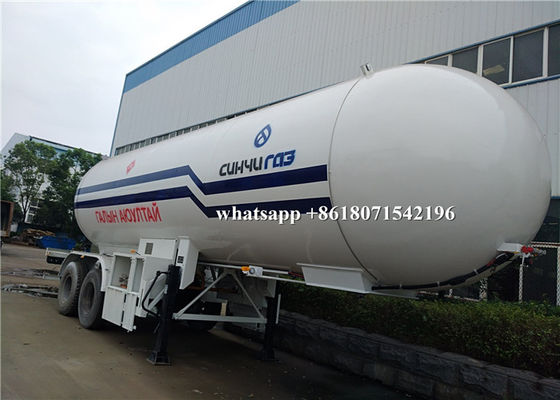

40m3 Propane Butane Tanker Trailer LPG Gaz Road Tanker Truck 40000liters 20mt for Nigeria
CLW group is located in Suizhou city,Hubei province,China with about 15 subsidiary companies like ChengLi Special Automobile Co., Ltd,CLW heavy industry Co.,Ltd,Hubei Weiyu Special Vehicle Co.,Ltd,,Hubei ChengLi Property and Investment Co.,Ltd,Suizhou ChengLi Mirco-loan Co.,Ltd and so on in vehicle manufacturing and selling,real estate,education,investment and etc.
As one of the main branches of CLW group,ChengLi Special Automobile Co.,Ltd,appointed by the Ministry of Industry and Information Technology of China,is a large manufacturer producing all kinds of special vehicles applied in sanitation,oil and gas,chemical industry,construction,transportation and so on.With registered trademark “CHENGLI” and “CLW” in China,company has established strong business relationship with famous chassis manufacturer in China such as DONGFENG,FAW,SINOTRUK,SHACMAN,CAMC,FOTON,ISUSU,JAC,JMC and etc.
Specification
| Tanker Essential Information | |
| Volume of Tank (cbm) | 45 |
| Overall Dimensions(L*W*H)(mm) | 12254*2500*3730 |
| Tank Dimensions(Inner Diameter*thickness*Length) | 2200*12*12254 |
| Estimated Tare Weight (kg) | 14023 |
| Payload(kg) | 18480 |
| Total Weight(kg) | 32503 |
| Wheelbase(mm) | 7170+1320 |
| Shell of Tanker | |
| Products | Liquefied Petroleum Gas (propane) |
| Fluid Property | Flammable |
| Design Temperature(℃) | -19℃~50℃ |
| Design Pressure(MPa) | 1.61 |
| Corrosion Allowance(mm) | 1.00 |
| Weld Joint Factor | 1 |
| Major Materials of Bearing Pressure | Tanker body:Q345R,12mm, |
| End plate:Q345R,12mm,double ellipse | |
| Main beam:16Mn | |
| Detection | |
| Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
| Flaw Detection | 100% Flaw detection |
| Hydraulic Test(MPa) | 2.21 |
| Manhole (As Customer’s Requirement) | |
| Quantity | 1;on top,DN450 |
| Safety Valve(As Customer’s Requirement) | |
| Quantity | 2 |
| Location | On the top of tanker |
| Size | DN50 or As Customer’s Requirement |
|
Level Gauge 3*13T Fuwa |
|
| Type | Manuel rotation type |
| Location | At the rear of the end plate |
| Running System | |
| Axles | 2*12T BPW brand |
| Tire | 12R22.5 Tubeless tire ,8 with one spare tire |
| Landing leg | JOST |
| King Pin | #50 or #90 |
| Control System | |
| Emergency Cut-off Valves | 2 |
| Ball Valve | 2 |
| Liquid Gauge | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Accessories | |
| Tool Box | 2 |
| Wheel Carrier | 1 |
| Fire Extinguisher | 2 |
| Fender | 6 |
| Paint | As Customer’s Requirement |
