उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| टैंक व्यास: | DN2700mm | डिजाइन दबाव:: | 1.71 एमपीए |
|---|---|---|---|
| स्तर नापने के लिए गेज: | रोटोगेज या मेग्नेटिक प्रकार | प्रतीक चिन्ह: | अनुरोध के अनुसार |
| आरेख: | हाँ | अंत मोटाई: | 16 मिमी |
| संक्षारण भत्ता: | 1 मिमी | प्रयोग: | एलपीजी गैस भंडारण, स्टेशन टैंक |
| जीवनभर: | 20 वर्ष | हाइड्रोलिक परीक्षण दबाव: | 2.21एमपीए 22.1बार |
| प्रमुखता देना: | transporting large propane tanks,large lpg storage tanks |
||

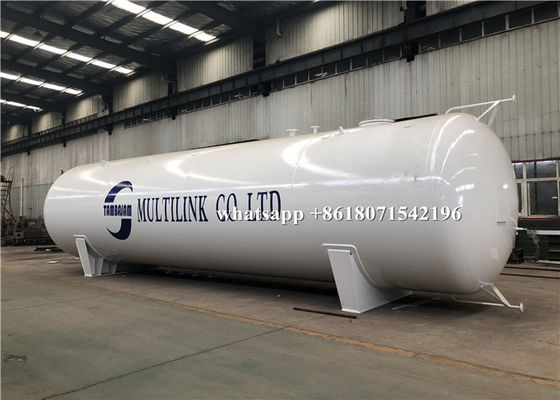

30ton 30tons Propane Gas Tanker 60000 Liters 60, 000L Pressure Vessel 60m3 LPG Storage Tank for Nigeria Market
Product Description
1. Storage medium of filling station gas tank : LPG, cooking gas,propane gas,Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of filling station gas tank : 5m³~200m³,2ton~100tons
3. Manufacturing standards of filling station gas tank : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Specification of 30mt filling station gas tank
| Parameter of 60000liters 30tons filling station gas tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 60cbm | Thickness of Shell | 14mm | |||
| Tank Material | Q345R | Thickness of End plate | 16mm | |||
| Overall Size | 10962*2728*3318mm | Tank Net Weight | 12750kg | |||
| Tank Diameter | 2700mm | Loading Capacity | 23940kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 15 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-100 | Stop Valve DN100 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-100 | Safety Valve DN100 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||
