उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| मटेरेल: | कार्बन स्टील Q345R | भरने का माध्यम: | प्रोपेन,ब्यूटेन |
|---|---|---|---|
| टैंक व्यास: | डीएन3400मिमी | स्तर नापने के लिए गेज: | रोटोगेज या मेग्नेटिक प्रकार |
| टैंक वाल्व: | कट-ऑफ वाल्व, सुई वाल्व, सुरक्षा वाल्व, रिटर्न वाल्व आदि। | गारंटी: | एक वर्ष |
| गोलाबारी: | 18 मिमी | अंत मोटाई: | 20 मिमी |
| संक्षारण भत्ता: | 1 मिमी | प्रयोग: | एलपीजी गैस भंडारण, स्टेशन टैंक |
| जीवनभर: | 20 वर्ष | हाइड्रोलिक परीक्षण दबाव: | 2.21एमपीए 22.1बार |
| प्रमुखता देना: | transporting large propane tanks,large lpg storage tanks |
||

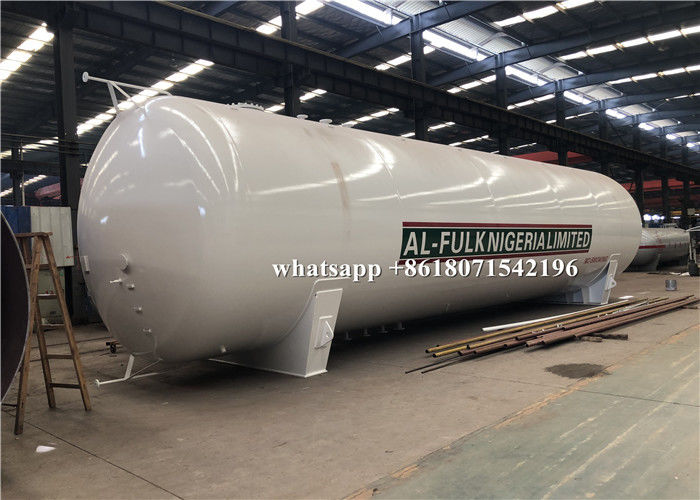

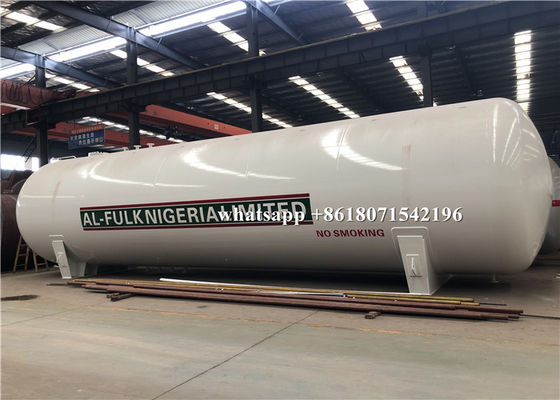

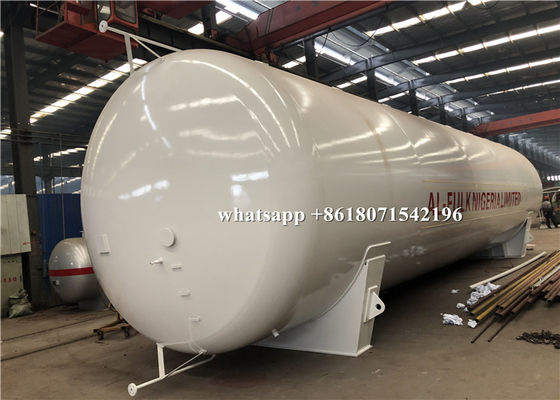

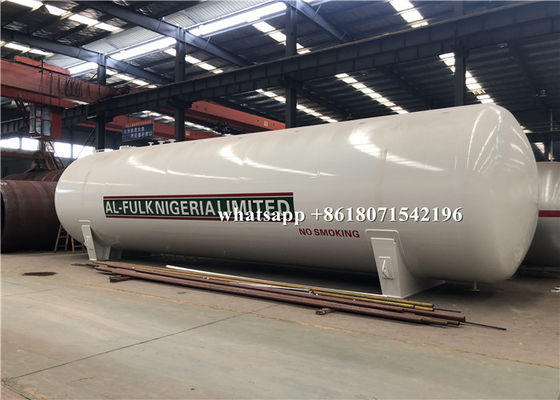

120000liters/120cbm/60ton/60mt Propane Storage Tank LPG Tanks Cooking Gas Cylinder Refilling
Product Description
1. Storage medium of lpg storage tank: LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of lpg storage tank: 5m³~200m³,2ton~100tons
3. Manufacturing standards of lpg storage tank: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Specification of lpg storage tank
| Parameter of 60mt 120cbm lpg storage tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 120cbm | Thickness of Shell | 18mm | |||
| Tank Material | Q345R | Thickness of End plate | 20mm | |||
| Overall Size | 13820*3436*4026mm | Tank Net Weight | 24960kg | |||
| Tank Diameter | 3400mm | Loading Capacity | 47880kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 510~590kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~50ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 15 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-80 | Stop Valve DN80 | 2 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-80 | Safety Valve DN80 | 2 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q3: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
