उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| टैंकर वॉल्यूमटैंकर वॉल्यूम: | 5CBM/5000लीटर | टैंक सामग्री: | Q345R/SA516 |
|---|---|---|---|
| डिजाइन दबाव: | 1.71एमपीए 1.77एमपीए 17.1बार, 17.7बार | लोडिंग सामग्री: | प्रोपेन/तरलीकृत पेट्रोलियम गैस/एलपीजी |
| मध्यम घनत्व: | 420Kg/m³, 450Kg/m³, 460Kg/m³, 480Kg/m³, 500Kg/m³, 520Kg/m³, 540Kg/m³। | यांत्रिक संपत्ति परीक्षण: | तन्यता, शक्ति, प्रभाव परीक्षण |
| खोल और सिर की मोटाई: | 10 मिमी, 12 मिमी | बिक्री के बाद सेवा: | स्पेयर पार्ट्स की आपूर्ति और इंजीनियर सहायता |
| रंग और लोगो: | ग्राहक अनुरोध के रूप में | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | transporting large propane tanks,large lpg storage tanks |
||

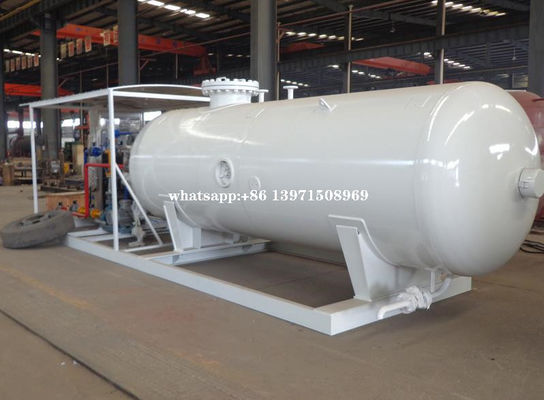

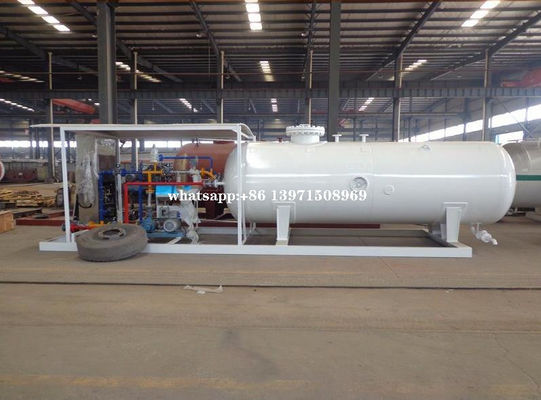

Hot Sale 5cbm/5000liter Liquid Propane Gas Storage Tank Cooking Cylinder Refilling Plant 2.5T LPG Dispenser Skid Station
Product Description
1. Storage medium: LPG, Liquid ammoina and Aether, etc.
2. LPG skid station capacity: 5m³ 10m³ 15m³ 20m³ 30m³ 40m³ 45m³ 50m³. This one is 10m³ LPG skid station.
3. Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008.
Product Specification
| Parameter of 5000liters propane Gas Storage Tank | ||||||
| ITEM | PARAMETER | ITEM | PARAMETER | |||
| Volume | 5cbm | Thickness of Shell | 10mm | |||
| Tank Material | Q345R | Thickness of End plate | 10mm | |||
| Overall Size | 3070*1620*2210 mm | Tank Net Weight | 2030 kg | |||
| Tank Diameter | 1600mm | Loading Capacity | 2375 kg | |||
| Design Pressure | 1.77Mpa | Gas Density | 420-550kg/M3 | |||
| Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm | |||
| Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk | |||
| Vapor Outlet | DN50 | Gas Outlet | DN50 | |||
| Life time | 20 years | |||||
| Accessories | ||||||
| Model | Item | Qty | Junction surface | |||
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |||
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |||
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |||
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |||
| A42F-25-80 | Safety Valve DN80 | 1 | RF | |||
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC | |||

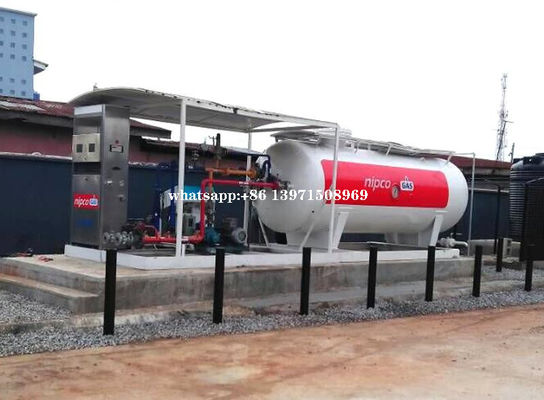

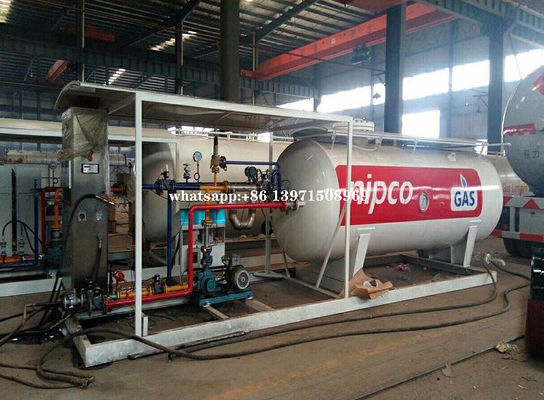

Reference Photos
We supply package solution for lpg station building as follows
Production Process
Our Service
1)Quick feedback to solve your questions;
2)Professional engineering and production team;
3)Related Accessories and spare parts offered,no future worries;
4)Regular customer after-sale visiting;
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tanker, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Any interests you can feel to contact us for details. Many Thanks.
Q2: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q3: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
