उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| चेसिस ब्रांड: | डोंगफेंग, सिनोट्रुक HOWO, JAC, फोटोन, इसुज़ु, आदि। | इंजन -शक्ति: | 430एचपी |
|---|---|---|---|
| टैंक का आकार: | क्षैतिज सिलेंडर आकार | टैंक क्षमता: | 59.52सीबीएम |
| टैंक लोडिंग क्षमता: | 30टन, 29टन | टैंकर सामग्री: | Q345r, Q370r, Q420r, SA516 |
| टैंक की मोटाई: | 12 मिमी | डिजाइन दबाव: | 1.61एमपीए, 16.1 बार/पीएसआई |
| उत्पादन मानक: | जीबी150-2013, एएसएमई आठवीं डिवी 01 | पंप करना: | पीटीओ संचालित हाइड्रोलिक पंप |
| स्तर मीटर: | रेगो रोचेस्टर या अन्य | प्रवाह मीटर: | विस्थापन प्रवाह मीटर |
| संक्षारण भत्ता: | 1.0 मिमी | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | bobtail propane truck,propane service truck |
||

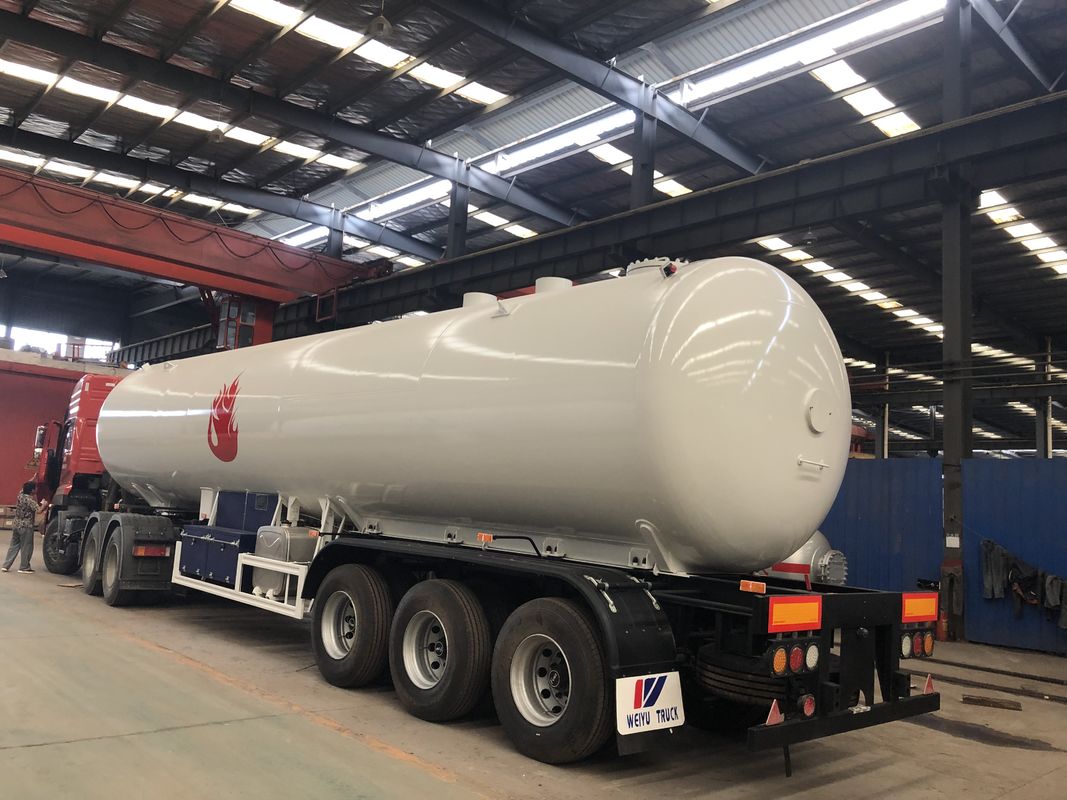

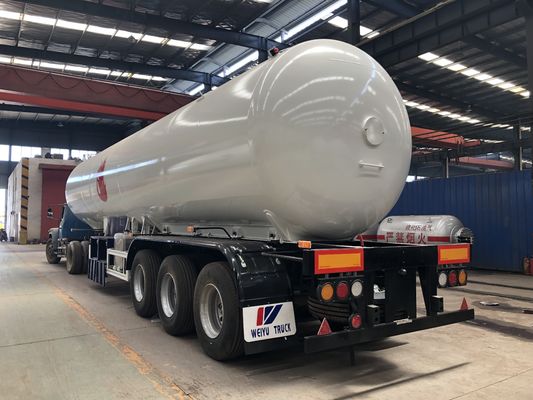

Factory Price 60cbm/59.52cbm LPG Mobile Transport Semi-Trailer Truck 30tons Liquid Propane Gas Tank Trailer
Product Description
1. Truck Brands: Dongfeng, Sinotruk HOWO, JAC, FAW, Foton, Isuzu, etc..
2. Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.
3. Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test.
4. Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings.
Product Specification
| Tank Essential Information | |
| Volume of Tank | 59.52 CBM (59520Liters / 30Tons) |
| Overall Dimensions(L*W*H) | 13000*2500*3990 mm |
| Filling Weight | 25000 kg |
| Tare Weight | 15000 kg |
| Total Weight | 40000 kg |
| Wheelbase | 7230+1310+1310 mm |
| Shell of tank | |
| Products | propene gas |
| Fluid Property | Flammable |
| Design Temperature | -20~50ºC |
| Design Pressure | 1.61 Mpa |
| Corrosion Allowance | 1 mm |
| Major Materials of Bearing Pressure | Tanker body:Q345, 11.5mm |
| End plate:Q345R, 11.5mm,double ellipse | |
| Main beam:16Mn | |
| Detection | |
| Heat Treatment | Overall treatment in a furnace,600ºC to 640ºC |
| Flaw Detection | 100% Flaw detection |
| Test Pressure | 1.61Mpa |
| Hydraulic Test | 2.1Mpa |
| Magnaflux inspection | Aim at welding place that flaw detection can not cover |
| Manhole(As customer's requirement) | 1, on top |
| Safety Valve(As customer's requirement) | 1, on top |
| Running system | |
| Axles | 3*13T BPW |
| Suspension | Mechanical suspension |
| Tire | 12R22.5 Tubeless tire,13 including one spare tire |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Landing leg | JOST brand, two-speed, manual operating |
| King Pin | #50 or #90 |
Reference Photos
Different Kinds of Dispenser Machine for Optional
Manufacturing Process
Delivery and Shipment
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
Q3: Have you supplied LPG products to any renowned companies?
A: Our group company is a regular strategic partner of some big gas companies. We have supplied many storage tanks and semi trailer for them with different sizes,such as ENOC,AARANO,NIPCO,LAKEGAS...The biggest size tank we ever provided is 200m3 LPG storage tanks,.
