उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| चेसिस ब्रांड: | डोंगफेंग, सिनोट्रुक HOWO, FAW, फोटोन, इसुज़ु, आदि। | इंजन -शक्ति: | 290एचपी |
|---|---|---|---|
| टैंक का आकार: | क्षैतिज सिलेंडर आकार | टैंक क्षमता: | 20सीबीएम |
| टैंक लोडिंग क्षमता: | 10 टन | टैंकर सामग्री: | Q345R, Q370r, Q420r, SA516 |
| टैंक की मोटाई: | 10 मिमी | डिजाइन दबाव: | 1.61एमपीए, 16.1 बार/पीएसआई |
| उत्पादन मानक: | पीटीओ संचालित हाइड्रोलिक पंप | स्तर मीटर: | रेगो रोचेस्टर या अन्य |
| प्रवाह मीटर: | विस्थापन प्रवाह मीटर | संक्षारण भत्ता: | 1.0 मिमी |
| लोगो और पैटर्न: | ग्राहक के अनुरोध के रूप में | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | bobtail propane truck,propane service truck |
||

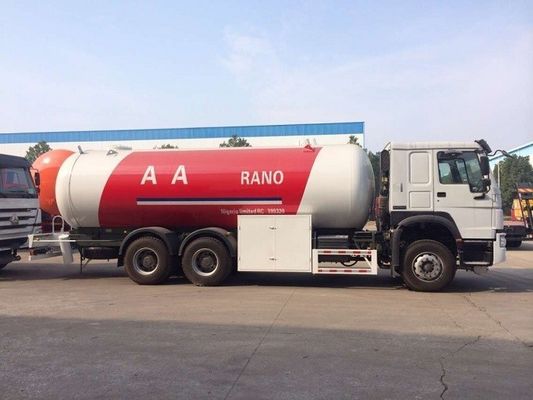

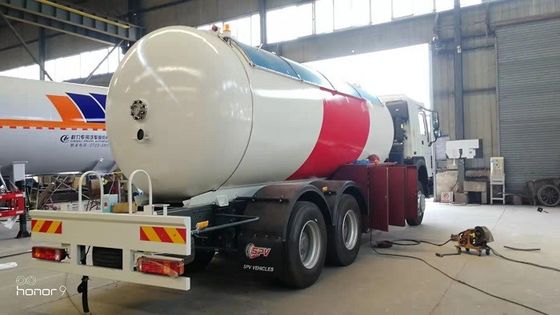

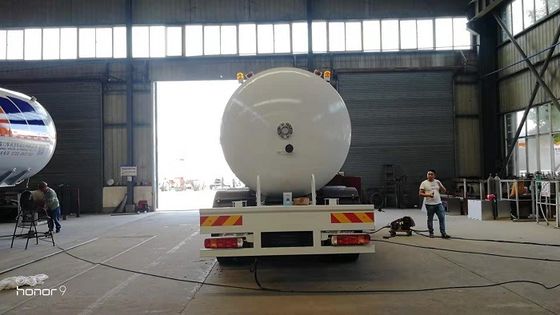

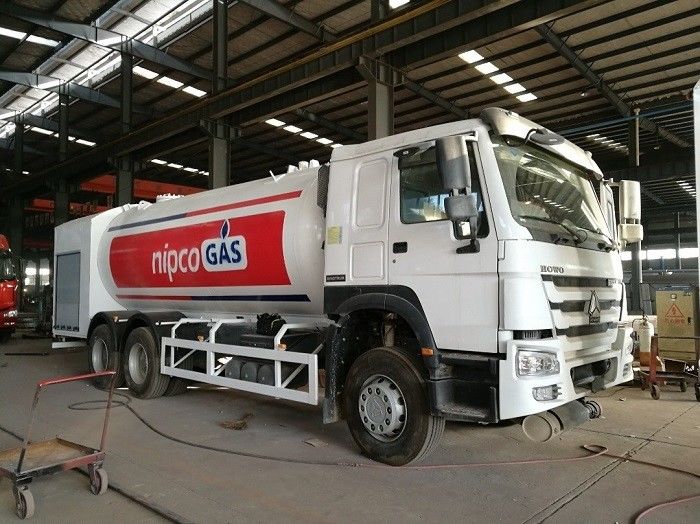

HOWO 6*4 20cbm/10tons LPG Bobtail truck Mobile LPG Tank Dispenser Truck
Product Description
1. Truck Brands: Dongfeng, Sinotruk HOWO, JAC, FAW, Foton, Isuzu, etc..
2. Tank Design: Horizontal cylinder Type, Bullet Tank, with elliptical or hemisphercial dish end.
3. Tank Test: 100% Radio Radiographic Test, Magnetic Power Test, Water Pressure Test, Air Tightness Test.
4. Dispensing System: 2" Hyrdaulic Truck Pump, 2" Flow Meter, 15meters Hose Reel for commercial Fillings.
Product Specification
| Item No. | Parameters |
| Overall Dimension | 10590x2495x3350 mm |
| Driving Model | Left hand drive |
| Gross Vehicle Weight | 25000 kg |
| Curb Weight | 14000kg |
| Payload | 10000kg(10Ton) |
| Wheel Base | 4600+1350 mm |
| Front Axle | HF7,7000kg |
| Rear Axle | ST16,16000kgX2 |
| Engine | 4-stroke direct injection,6-cylinder in-line with water cooling,turbo-charging and inner cooling |
| Engine horsepower | 290HP EUROII |
| Displacement | 9760mL (Diesel) |
| Max Driving Speed | 95 km/h |
| Gearbox | HW19710 |
| Cabin | Standard HW76 cabin,2~3 Passenger allowed,with Air Conditioner |
| Tire | 12R22.5 (10 pcs with 1 spare) |
| LPG tank | |
| Volume: | 20cbm |
| Tank material: | Q345R |
| Tank diameter: | 2050mm |
| Tank thickness: | 10mm |
| End plate | 10mm |
| Tank length: | 7644mm |
| Gas phase | DN50 |
| Liquid Phase | DN80 |
| Filling gas | Propane(LPG) |
| Design Pressure: | 1.61Mpa |
| Accessory | |
| LPG Pump | 1 pc |
| LPG filling machine | 1 pc |
| Filling hose with filling nozzle | 15M |
| Level Gauge | Manual rotation type,at the rear of tank |
| Safety Valve | 1,DN80 |
| Tool and Valve Box | 1 |
| Thermometer | 1 |
| Pressure Gauge | 1 |
| Emergency Valve | 1 |
| Fender | Steel |
| Fire Extinguisher | 2 |
| Exhaust shaft | At the front of truck for safety |
Manufacturing Process
Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of LPG products I can order from your company?
A: We specialize in producing 5CBM to 200CBM LPG above ground storage tanker, 5CBM to 120CBM LPG underground storage tank, 5CBM to 38.5CBM LPG tank truck, 5CBM to 25.5CBM LPG dispenser truck/LPG bobtail truck, 40CBM to 61.9CBM LPG semi trailer and 5CBM to 50CBM LPG Skid Station/LPG mobile filling station etc. Please feel free to contact us for details.
Q2: What is your production standard of LPG products? Can you manufacture your products under ASME standard?
A: Usually our LPG products adopts GB-150/China standard, there ASME standard for optional. Yes, we can do ASME standard and our ASME standard as per DIV 01 SEC VIII.
