उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| कचरा पेटी सामग्री: | स्टेनलेस स्टील | फ़्रेम सामग्री: | एल्यूमीनियम मिश्र धातु |
|---|---|---|---|
| बैटरी: | छह रखरखाव-मुक्त बैटरियां | मोटर: | डीसी ब्रशलेस डिफरेंशियल मोटर |
| चार्ज का समय: | 6 से 8 घंटे | वज़न: | 858 किग्रा |
| ऑपरेटिंग समय: | 6 से 8 घंटे | स्वीप चौड़ाई: | 2000 मिमी |
| डस्टबिन क्षमता: | 200L | कार्य कुशलता: | 15000m2/H |
| थका देना: | ठोस बड़ा रबर टायर | रंग: | स्वनिर्धारित |
| गारंटी: | 1 वर्ष | ||
| प्रमुखता देना: | street sweeper vacuum truck,mechanical sweeper truck |
||

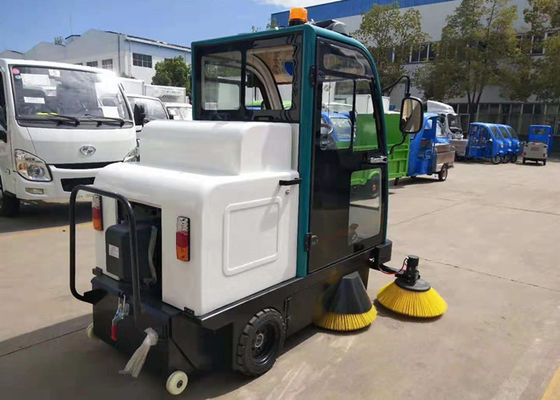

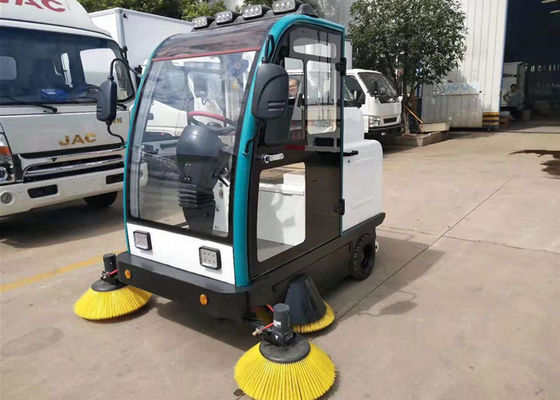

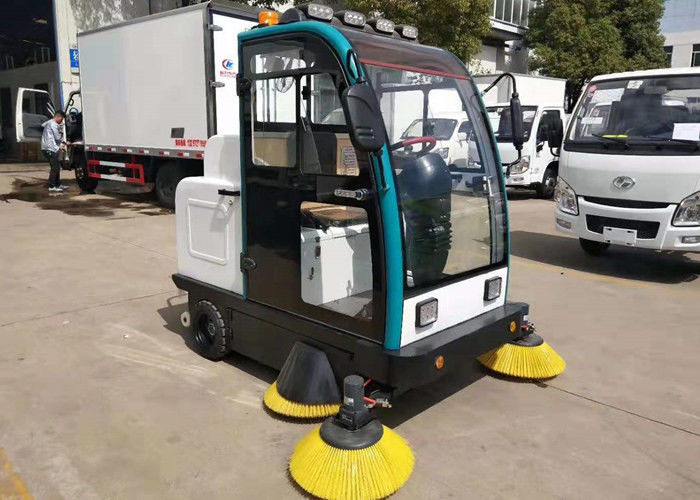

New Mini Electric Road Sweeper Truck Street Cleaning Garbage Truck Work Time 6-8h
Description:
1. Electric operation, no noise, no exhaust emissions
2. Integrated sweeping and vacuuming, no dust
3. can continuously work for 6-8 hours per day.
4. High work efficiency, can clean 15000m2 per hour
5. Aluminum alloy frame with stainless steel dustbin, carbon powder on the surface, resistant to corrosion.
| Electrical System | Electronic control | Imported parts assembly intelligent controller | ||
| Battery | 48V150AH (Six maintenance-free batteries) | |||
| Motor | DC brushless differential motor | |||
| Charger | Portable smart charger | |||
| Charging time | 6-8 hours (discharge rate 100%) | |||
| Technical Parameters | Rated occupant | 1 | ||
| Length * width * height | 2250*2000*2000MM | |||
| Walking speed | 8KM/H | |||
| Minimum turning radius | 1200mm | |||
| Maximum grade | 25° | |||
| Braking distance | ≤4m | |||
| Sweep width | 2000MM | |||
| Work efficiency | 15000m2/H | |||
| Battery capacity | 48V150AH | |||
| Filtration area | 12m² | |||
| Operating power | 850+500*2+100*4+50 | |||
| Body System | Seat | Bus cold foam sponge + high rebound PU leather | ||
| Car body | Aluminum alloy (frame, beam, side guard) + steel frame + rotomolding / sheet metal shell / ABS engineering plastic molded parts | |||
| Car door | Tempered HD glass door | |||
| Rearview mirror | Equipped | |||
| Steering wheel | Car Steering Wheel | |||
| Chassis System | Motion transfer system | Infinitely variable speed system | ||
| Steering system | Four-way adjustment direction pipe column, gear type steering machine | |||
| Front and rear axles and suspension | Front wheel shock absorption, Split rear axle | |||
| Braking System | Two-disc hydraulic disc brake (electronic brake system, pine throttle automatic brake) | |||
| Tire | Solid large rubber tire front wheel 350*100 rear wheel 400*100 |
|||
| Rim | Steel rim | |||
Sales Service:
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ:
Q1: What kinds of sweeper trucks I can order from your company?
A: There are various sizes of sweeper trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied sweeper products to any overseas companies?
A: Yes,with need of cleaning cities,we offered sweeper trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
