उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| ट्रक ब्रांड: | सिनोट्रुक होवो या अनुरोध के रूप में | कर्षण क्षमता: | 3ton |
|---|---|---|---|
| चपटी लंबाई: | 5400 मिमी | फ्लैटबेड की चौड़ाई: | 2200 मिमी |
| ट्रक का कुल आकार: | 7640x2280x2520मिमी | चरखी: | 1 यूनिट |
| चरखी रस्सी: | 25 मीटर | रस्सी व्यास: | DN11mm |
| चरखी व्यास: | DN90mm | न्यूनतम रिलीज गति: | 3.23 मीटर/मिनट |
| प्रमुखता देना: | heavy duty tow truck,emergency tow truck |
||
Product Description

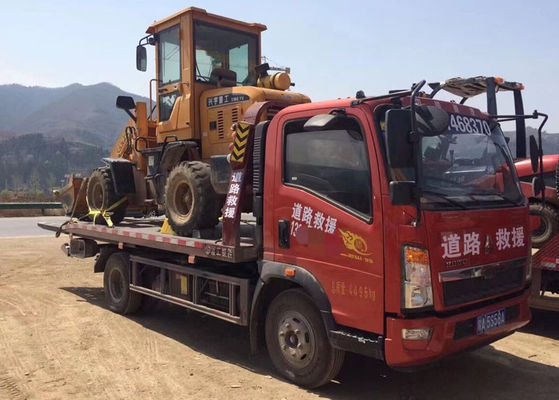

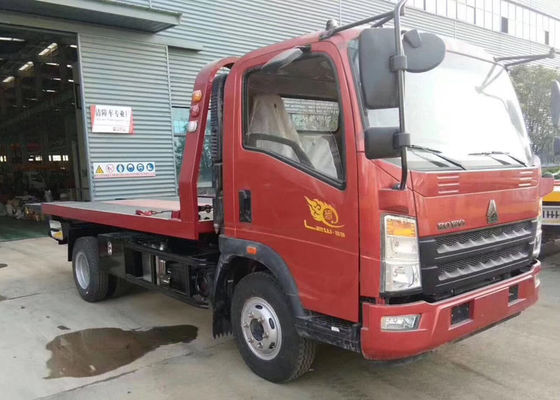

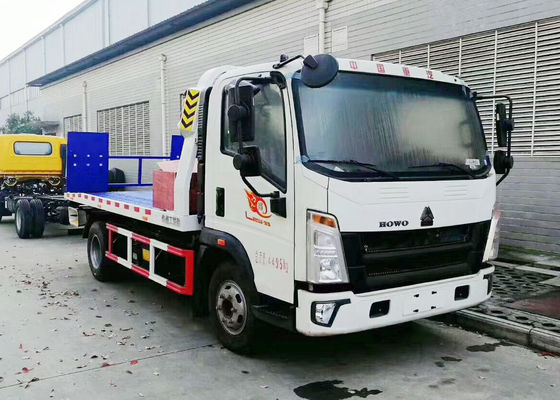

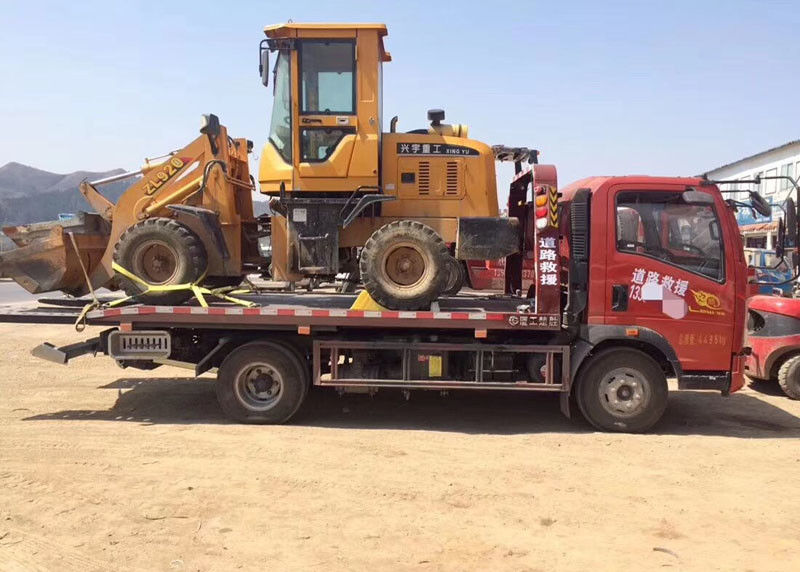

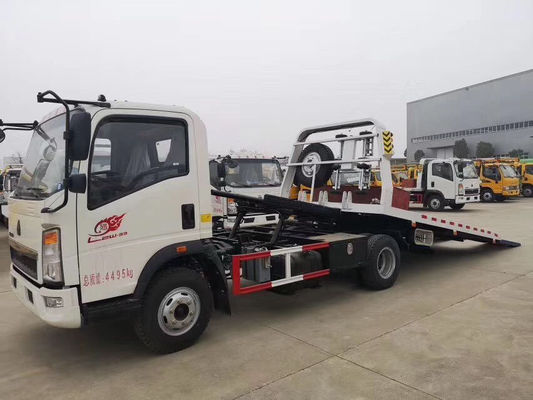

Construction Equipment Car Rescue Sinotruk Howo Flatbed Wrecker Tow Truck
1) 3Ton Towing Recovery Truck for Towing Broken Cars or Equipment
2) Sinotruk HOWO Brand Chassis for Euro 2 or Euro 3 Emission
3) Spare parts of 3ton towing recovery truck:
4) Capacity range of towing recovery truck: 3ton to 50ton
Structure drawing
| Item No. | Name |
| 1 | chassis |
| 2 | Warning lamp |
| 3 | Single lamp(white-front clearance lamp;red-rear clearance lamp |
| 4 | Winch and steel rope |
| 5 | Loading plate |
| 6 | Side signal lamp |
| 7 | Chain hook |
| 8 | Wheel lift |
| 9 | “L” bracket |
| 10 | Operation and hydraulic system |
| 11 | Auxiliary wheel |
| 12 | Side guard rail |
| 13 | Tool box and accessories |
| 14 | PTO and oil pump |
| 15 | Witch and operation handle of PTO |
Specification of howo 3ton towing recovery truck
| Item No. | Parameters |
| Overall Dimension | 5995x2300x2450 mm |
| Driving ModelL | LHD or RHD |
| Cabin | 2~3 persons |
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 3860 kg |
| Loading Weight | 505 Kg |
| Wheel Base | 3360 mm |
| Front/rear Tread | 1210/2470 mm |
| Approach/Departure Angle | 24/12 degree |
| Front Axle | 3310 kg |
| Rear Axle | 4965 kg |
| Engine | Yunnei engine |
| Engine horsepower | 115 HP EURO III |
| Displacement | 3856mL (Diesel) |
| Max Driving Speed | 90 km/h |
| Tire | 7.00-16( 7 pieces) |
| Loading Plate | |
| Body Material | Q235A carbon steel |
| Lifting Weight | 3000kg |
| Loading Plate Dimensions | 4450*2200mm |
| Loading Plate Glide Range | 2700mm |
| Min. Slope Anglo | 8 degree |
| Steel Rope Length | 21m |
| Winch Speed | 5m/min |
| Towing Weight | 4000kg |
| Wheel Lift Max. Length | 1640mm |
| Wheel Lift Extension | 1340mm |
| Tool Box no. | 1 |
| Auxiliary wheel no. | 2 |
| “L” bracket no. | 1 |
| LOGO |
Company Logo or any advertisement can be printed on the carriage body according to the customer's design. |
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of towing recovery truck I can order from your company?
A: There are various sizes of wrecker trucks with different functions and different capacity,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied towing recovery truck to any overseas companies?
A: Yes,with need of towing services,we offered wrecker trucks and wrecker superstructurer to many African,south-east Asian and south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
