उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| चोकर: | सिनोट्रुक हॉवो | इंजन: | सिनोट्रक 336एचपी, 371एचपी, 340एचपी, 380एचपी |
|---|---|---|---|
| GearBox: | 10 आगे और 2 पीछे | धुरा: | 7 टन फ्रंट एक्सल और 13 टन-16 टन रियर एक्सल |
| टिपिंग प्रणाली: | मध्य टिपिंग या सामने की टिपिंग | टिपिंग सिलेंडर: | हाइवा या चीनी ब्रांड |
| बॉक्स प्रकार: | चौकोर आकार या गोल आकार | ||
| प्रमुखता देना: | heavy duty tipper trucks,heavy equipment dump truck |
||

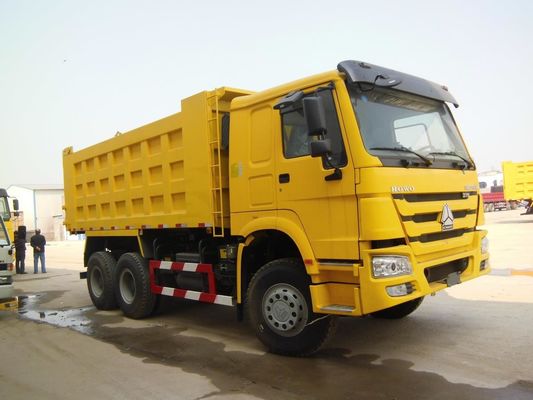

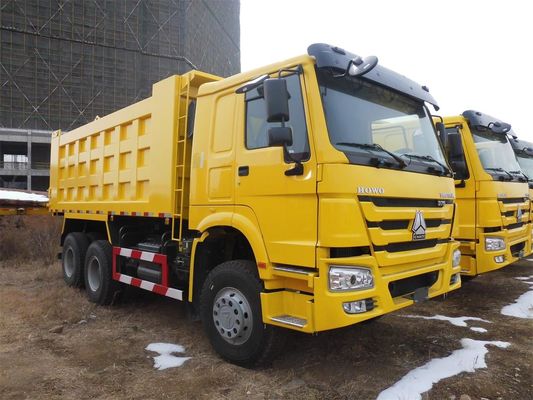

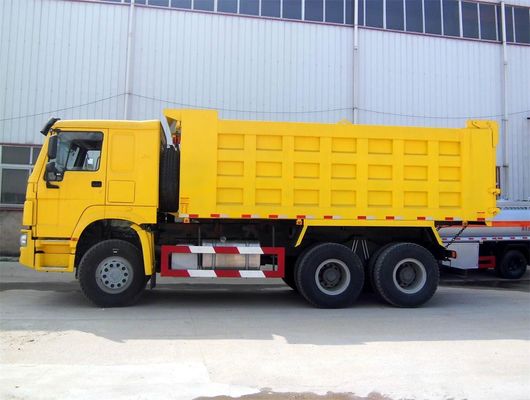

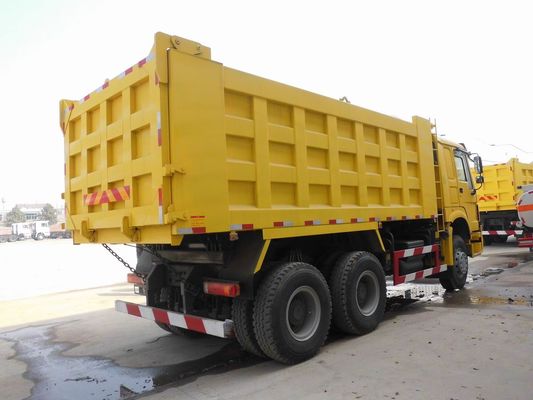

20Cubic Meters 20-30Ton Heavy Duty Sinotruk Dump Truck
1. Chassis: Sinotruk Howo, 336HP or 371HP Diesel Engine
2. Box Size: 5800 x 2300 x 1500mm
3. Heavy Duty Steel Box, Strong Carbon Steel, 6mm side, 8mm Bottom,
4. Hyva Front Tipping Cylinder for Choice
Specifications of 6-7CBM Concrete Mixer Truck
| Description | 20 Cubic meters Dump truck 25ton Dump truck 25T Dump truck for sale | ||
| Condition | New condition/LHD&RHD | ||
| Chassis | Curb weight(kg) | 12450 | |
| G.V.W.(kg) | 25000 | ||
| Wheelbase(mm) | 3825+1350 | ||
| Dimensions(mm) | 8545×2496×3170 | ||
| Overhang (front/rear) (mm) | 1500/1870 | ||
| Wheel track (front/rear) (mm) | 2022/1830/1830 | ||
| Approach/Departure angle(°) | 19/23 | ||
| Axle Load(kg) | 7000/18000(co-load two shaft) | ||
| Max. driving speed(km/h) | 75 | ||
| Brand | Sinotruk | ||
| Model | ZZ | ||
| Tire | Number | 12 tires with 1 spare tire | |
| Specifications | 12.00-20 18PR | ||
| Clutch | Reinforced diaphragm clutch | ||
| Gear Box | HW15710 (10 shift), Manual type | ||
| Front passenger | 2+1 | ||
| Engine | Model | WD615.95 | |
| Displacement(ml) | 9726 | ||
| Power(kw) | 247 | ||
| Emission standard | Euro 3 | ||
| Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Upper | Capacity(m³) | 18-20 | |
| Tank material | Q235 carbon steel | ||
| Tipping type | Front tipping type ,Middle tipping type | ||
| Thickness(mm) | floor 8 side & back 6 | ||
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of dump trucks I can order from your company?
A: There are various sizes and types of dump trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied dump truck to any overseas companies?
A: Yes,with need of government project,we offered dump trucks to many Africa and south-east Asian countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
